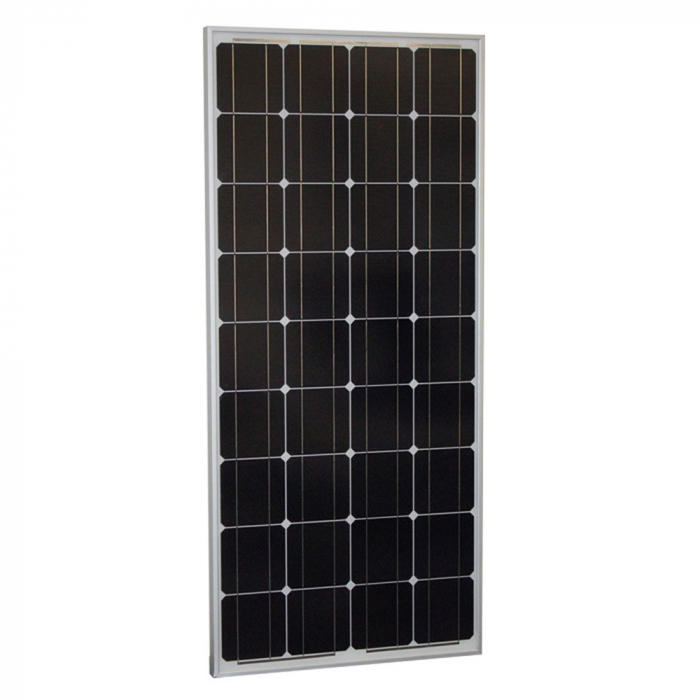

Name: Solar Module Phaesun® Sun Plus 170 monocrystalline 170 Wp
Brand: Phaesun
SKU: 220900
Price: 147.48 EUR
Availability: InStock

Solar power – environmentally friendly and self-sufficient power supply

The solar module Phaesun^® Sun Plus 170 is suitable for both professional and private use.

A double framing made of scratch-resistant, anodized aluminum ensures excellent stability of the modules. The crystalline cells are embedded in low-iron crystal glass and a double-layer, highly resistant film.

The practical junktion box (dustproof and watertight IP 65) ensures a user-friendly and safe outdoor installation.

Delivery content

Solar module Phaesun^®Sun Plus 170 monocrystalline
Connection cable
Operation manual DE, EN

Customised Solar Island Systems from IVT: Download questionnaire

Technical Data

System voltage	12 V DC
Power	170 Wp
Voltage (max.)	At max. power 17.6 V
Current (max.)	At max. power 9.09 A
Open circuit voltage	21.6 V
Short circuit current	9.8 A
Cells	36 x mono
Efficiency cell	17.1 %
Efficiency module	14.6 %
Power tolerance (max.)	+/- 3 %
System voltage (max.)	600 V
Operating temperature	-40 °C to +85 °C
Temperature coefficient	Power -0.43 % \| Voc 0.31 % \| Isc 0.044 %
Front	Tempered glass
Frame	Silver anodized aluminium
IP protection	Junction box IP 65
Module type	Monocrystalline
Module cable	Ø 4 mm² \| Length: 900 mm \| Connector: Standard4
Dimensions (L x W x H)	1508 x 680 x 35 mm
Weight	11.8 kg
