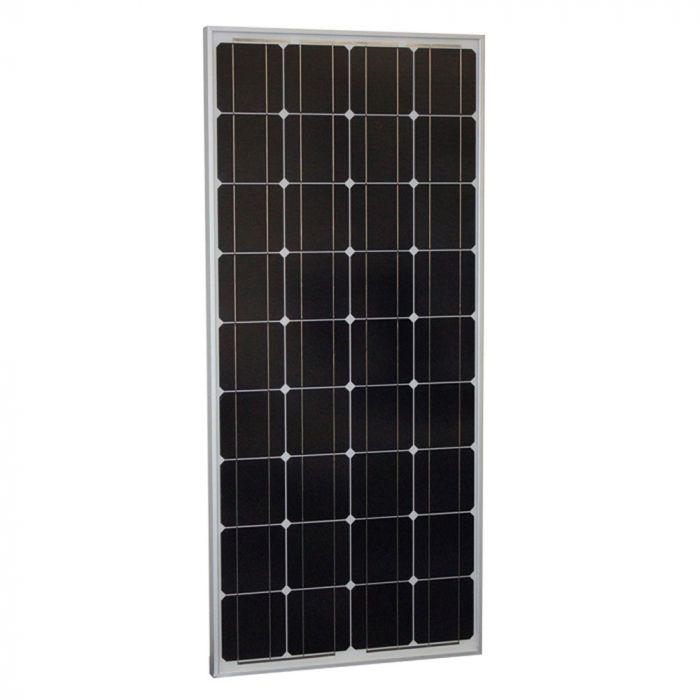

Name: Solar Module Phaesun® Sun Plus 100 S monocrystalline 100 Wp
Brand: Phaesun
SKU: 200056
Price: 100.38 EUR
Availability: InStock

Solar power – environmentally friendly and self-sufficient power supply

The solar module Phaesun^® Sun Plus 100 S is suitable for both professional and private use. A double framing made of scratch-resistant, anodized aluminum ensures excellent stability of the modules.

The crystalline cells are embedded in low-iron crystal glass and a double-layer, highly resistant film.

The practical junktion box (dustproof and watertight IP 65) ensures a user-friendly and safe outdoor installation.

Delivery content

Solar module Phaesun^®Sun Plus 100 S monocrystalline
Connection cable
Operation manual DE, EN

Customised Solar Island Systems from IVT: Download questionnaire

Technical Data

System voltage	12 V DC
Power	100 Wp
Voltage (max.)	At max. power 17.6 V
Current (max.)	At max. power 5.68 A
Open circuit voltage	21.6 V
Short circuit current	6.14 A
Cells	36 x mono
Efficiency cell	17.8 %
Efficiency module	15.4 %
Power tolerance (max.)	+/- 3 %
System voltage (max.)	600 V
Operating temperature	-40 °C to +85 °C
Temperature coefficient	Power -0.45 % \| Voc 0.37 % \| Isc 0.081 %
Front	Tempered glass
Frame	Silver anodized aluminium
IP protection	Junction box IP 65
Module type	Monocrystalline
Module cable	Ø 4 mm² \| Length: 900 mm \| Connector: Standard4
Certificates	CE, RoHs
Dimensions (L x W x H)	1200 x 540 x 35 mm
Weight	8.2 kg
