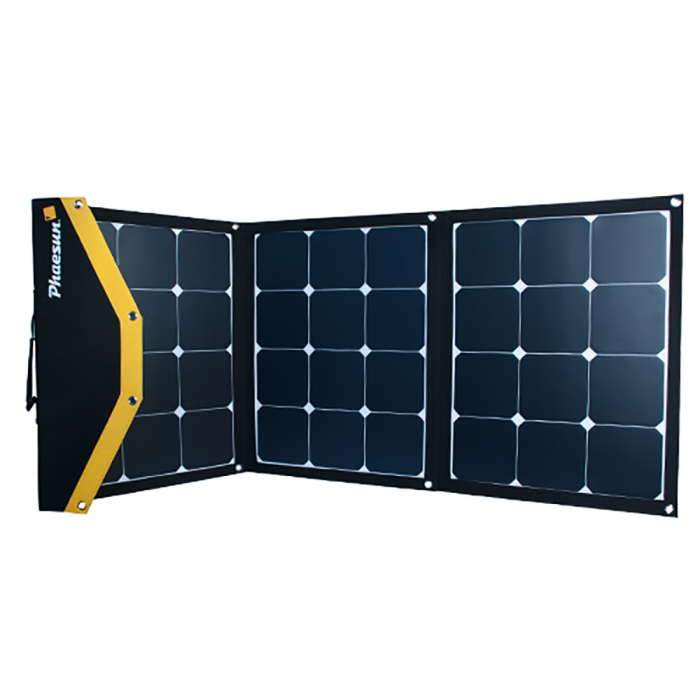

Name: Solar Module Phaesun® Fly Weight 135/3, 3 x 45 W monocrystalline 135 Wp
Brand: Phaesun
SKU: 200068
Price: 297.44 EUR
Availability: InStock

Fly Weight solar module – high energy yield in the smallest space

Fly Weight has made its mark with a high energy yield on the most limited space and the lowest weight.

When folded in the textile frame and belted, this moduleis an unobstrusive companion.

The outside pocket hides necessary cables.

The most important features

Integrated, fold-in legs allow any elevation
Module can be tensioned with integrated eyelets
Including various connection cables
Even less sensitive to bending due to the reinforced backing foil
ETFE laminate is extremely translucent and is characterized by its durability and resistance

Delivery content

Solar module Phaesun^® Fly Weight 135/3 monocrystalline
Several connection cables

Customised Solar Island Systems from IVT: Download questionnaire

Technical Data

System voltage	12 V DC
Power	135 Wp
Voltage (max.)	22.6 V
Current (max.)	6.0 A
Open circuit voltage	26.0 V
Short circuit current	6.4 A
Cells	3 x 12 mono
Efficiency cells	23.9 %
Efficiency module	15.8 %
System voltage (max.)	45 V
Operating temperature	-10 °C to +60 °C
Temperature coefficient	Power - 0.270 % \| Voc - 0.236 % \| Isc 0.058 %
Front	Foil, ETFE
Frame	Textile
Module type	Monocrystalline
Module cable	Ø 2,5 mm² \| Length 4000 mm \| SAE plug to wire and ferrule
Certificates	CE, RoHs
Dimensions (L x W x H)	Unfolded 1525 x 560 x 10 mm, folded 440 x 560 x 20 mm
Weight	3.6 kg
