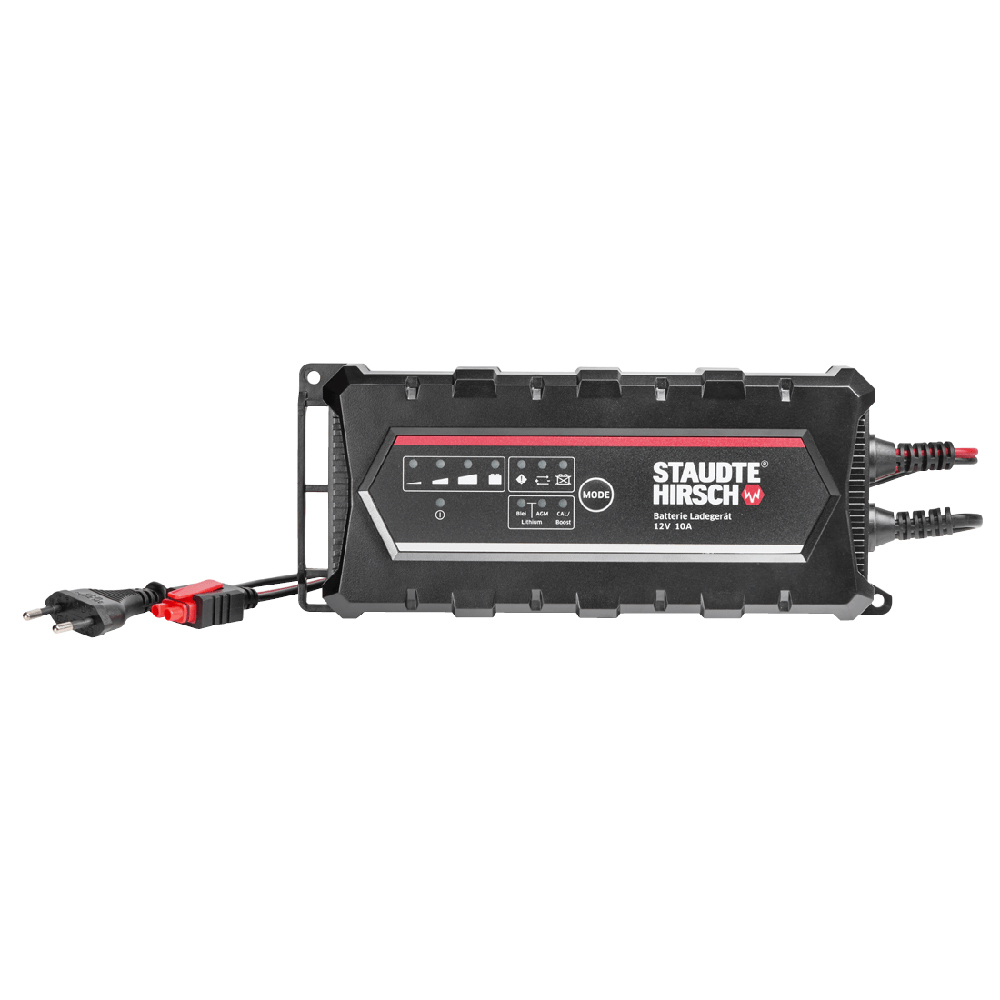

Battery Charger Staudte Hirsch SH-3.150, 12 V, 10 A

Battery Charger Staudte Hirsch SH-3.150, 12 V, 10 A

Zoom image
Important characteristics and features:





• Suitable for 12 V lead and calcium batteries from 20 Ah
• Suitable for 12 V lithium batteries with BMS from 20 Ah

• Multi-step, microprocessor-controlled charging method
• Selectable charging method: AGM, SLA/Gel, Lithium and Calcium/Boost
• Regeneration step for the reactivation of deep discharged batteries
• Float charging phase and auto-memory-function
• Protection against short circuit, reverse polarity and overcharging
• Clear operation and display panel
• Easy operation with one button
• Jet-water-protected and dust-tight housing (IP 65)
• Delivery including 2-piece charging adapter set



100,67 EUR

19 % VAT excl.

Product no.: 331500
EAN: 4030072331500

Battery Charger Staudte Hirsch SH-3.150, 12 V, 10 A
Battery Charger Staudte Hirsch SH-3.150, 12 V, 10 A
Battery Charger Staudte Hirsch SH-3.150, 12 V, 10 A
Battery Charger Staudte Hirsch SH-3.150, 12 V, 10 A
Battery Charger Staudte Hirsch SH-3.150, 12 V, 10 A



Recommended application:










Professional charger for workshops and for private use

The fully automatic Battery Charger SH-3.150 is designed for professional use in workshops as well as diverse use at home. It is suitable for the gentle charging and optimum care of 12 V lead and 12 V calcium batteries as well as 12 V lithium batteries (LiFePO4) with integrated battery management system (BMS).

A special regeneration mode is used to reactivate even deep discharged batteries. The integrated float charging phase ensures that the state of charge is constantly monitored and optimally recharged when required.

Due to its robust, jet-water-protected and dust-tight housing (IP 65), the charger can also be used safely and reliably outdoors in rain or snow.







The most important characteristics and features:



 Advantages of the intelligent, multi-step charging


The fully automatic multi-step charging method guarantees that your battery is charged fully and gently in the shortest possible time and according to its type.


Mode          Battery type Battery capacity Charging current Cut-off-voltage
AGM 12 V AGM batteries from 20 Ah 10 A  14.7 V
SLA/Gel

12 V lead-acid batteries
12 V lead-gel batteries
from 20 Ah 10 A  14.4 V
Lithium 12 V LiFePObatteries with BMS  from 25 Ah 10 A  14.4 V
Calcium/
Boost
12 V calcium batteries
12 V lead-acid batteries
from 25 Ah
from 20 Ah
10 A  16.0 V





 Regeneration step for the reactivation of deep discharged batteries


When a battery is connected to the charger, the device first determines independently what the charging status of the battery is (deep discharged, partially discharged). If the battery is detected as deep discharged, the charging process will automatically start in regeneration mode. A lower charging current is used to bring the deep discharged battery back to a voltage at which the regular charging function can be started.

Should this be no longer possible, the battery is detected as defective and the error is indicated by an optical signal.





 Float charging phase – ideal for longer periods of inactivity


Thanks to the float charging phase included in the multi-step charging process, the battery capacity is constantly monitored, optimally recharged if necessary and capacity losses due to self-discharge are compensated immediately.

This fully automatic feature guarantees the instant operability of your vehicle at all times and ensures that your battery is fully efficient even after long periods of inactivity.




 Integrated: Auto-Memory-Function


The auto-memory-function ensures that the battery charger returns automatically to the previously selected mode after power is restarted following a supply voltage failure.





 Safe operation – protection against short circuit, reverse polarity and overcharging


Defective, short-circuited or reverse-poled rechargeable batteries are automatically detected by the charger and indicated by visual warning signals.

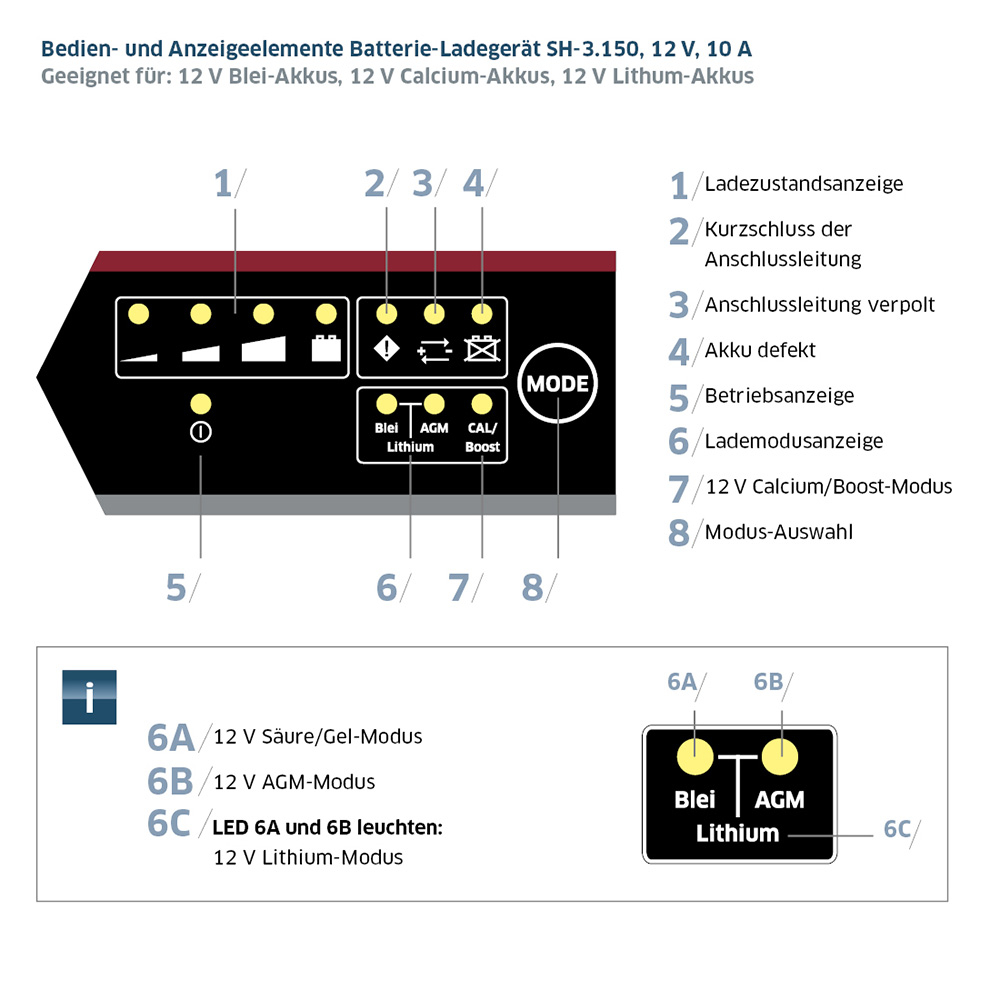

 Clear display – easy to use







   Clear operation and display panel

   1  Charging status indicators
   2  Short circuit of connection cable
   3  Connection cable with reverse polarity
   4
Battery defective
   5  Operating display
   6  Charging mode indicators
   7  12 V Calcium/Boost mode
   8  Mode selection








The clearly arranged operation and display panel has charging mode, charging status and error indicators. It keeps you informed about the selected operating mode, the selected battery type and its charging status, at all times. Possible errors are visually displayed.

With the MODE button you can easily and conveniently select the desired settings or charging method.





 Jet-water-protected and dust-tight housing (IP 65)



Its robust, jet-water-protected and dust-tight housing (IP 65) allows the charger to be used safely and reliably outdoors in rain or snow.

Thanks to its practical mounting rail, it can be firmly mounted, for example, on the garage wall.

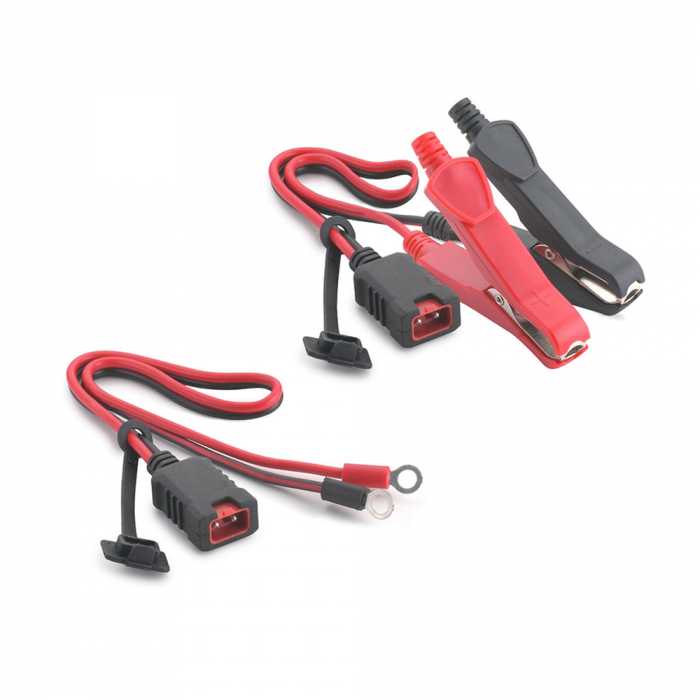

 Included charging adapters – Conveniently connect and exchange



The 2-piece, water-protected (IP 44) adapter cable set, which is included in the delivery content,
allows for a versatile and flexible use:






Simply connect and exchange
Thanks to the quick-contact plug, the required
adapter cable can simply be connected to the
charger cable and, if necessary, replaced with
another one.






Adapter cable with battery clamps
By means of the completely isolated battery
clamps, the charger can be quickly and safely
connected to or disconnected from the battery.

















Adapter cable with eyelet rings
It can be permanently connected to hard-to-reach batteries.
Advantage: The eyelets only have to be fixed to the battery once. After that, the charger can be connected to e.g. the motorcycle with little effort using the quick-contact plug. (Diameter eyelet rings outside 12 mm, inside 6.5 mm).








The adapter cables may also be ordered separately:




3-piece adapter cable set

To the set >



Adapter cable with battery clamps

To the product >

  Adapter cable with eyelet rings

To the product >





  Adapter cable with 12 V plug

To the product >









 12 V AGM mode





Step 1: Softstart phase
The first charging step serves to put a deep discharged battery back into a chargeable state. The softstart phase is not necessary, if the battery voltage is at least 10.0 V.

Step 2: Bulk phase
In this step, the battery is constantly charged with max. 10 A charging current.

Step 3: Absorption phase
In step 3, the battery is charged with constant voltage.

Step 4: Floating phase
After reaching the cut-off-voltage (14.7 V), the battery is constantly supplied with current.
Capacity losses through self-discharge are compensated immediately.





 12 V SLA/Gel mode





Step 1: Softstart phase
The first charging step serves to put a deep discharged battery back into a chargeable state. The softstart phase is not necessary if the battery voltage is at least 10.0 V.

Step 2: Bulk phase
In this step, the battery is constantly charged with max. 10 A charging current.

Step 3: Absorption phase

In step 3, the battery is charged with constant voltage.

Step 4: Floating phase
After reaching the cut-off-voltage (14.4 V), the battery is constantly supplied with current.
Capacity losses through self-discharge are compensated immediately.





 12 V Lithium mode





Step 1: Check phase
If the battery management system (BMS) is switched off due to low battery voltage, it is reactivated by a control signal from the battery charger. The charging process does not start until then.

Step 2: Softstart phase
The softstart phase serves to put a deep discharged battery back into a chargeable state. This charging step is not necessary if the battery voltage is at least 10.0 V.

Step 3: Bulk phase
In this phase of the charging process, the battery is constantly charged with max. 10 A charging current.

Step 4: Absorption phase

In this charging step, the battery is charged with constant voltage.

Step 5: Floating phase
After reaching the cut-off-voltage (14.4 V), the battery is constantly supplied with current.
Capacity losses through self-discharge are compensated immediately.






 12 V Calcium/Boost mode





Step 1: Softstart phase
The first charging step serves to put a deep discharged battery back into a chargeable state. The softstart phase is not necessary if the battery voltage is at least 10.0 V.

Step 2: Bulk phase I
In this step, the battery is constantly charged with max. 10 A charging current.

Step 3: Absorption phase I
In step 3, the battery is charged with constant voltage (14.7 V).

Step 4: Check phase
Prüfung der Funktionsfähigkeit des Akkus.

Step 5: Bulk phase II
The battery is charged constantly with a reduced charging current of 5 A until the cut-off-voltage is reached.

Step 6: Absorption phase II
The battery is constantly supplied with voltage (16 V) until it is fully charged.

Step 7: Floating phase
The battery is constantly supplied with voltage (13.6 V). The trickle charge occurs with reduced charging current.




 3 year manufacturer warranty



  Staudte Hirsch products are manufactured following a high quality standard and strict quality guidelines. We are so convinced of the longevity of our products that we add another year to the statutory manufacturer warranty free of charge.





 Delivery content


• Battery Charger SH-3.150
• Adapter cable with battery clamps
• Adapter cable with eyelet rings
• Instruction manual in DE, GB









Technical data



Battery Charger SH-3.150, 12 V, 10 A




Input


Operation voltage   220 – 240 V AC, 50/60 Hz
Input current   max. 1 A
Power consumption   175 VA

Output

Suitable battery voltage    12 V
Charging current   max. 10 A ± 10 %
AGM, SLA/Gel, Lithium and Calcium/Boost mode

Rechargeable battery type   12 V lead batteries (Acid, Gel, AGM)
12 V calcium batteries
12 V LiFePO4 batteries

Battery capacity

from 20.0 Ah AGM, SLA/Gel mode
from 25.0 Ah Lithium, Calcium/Boost mode


Charging method   Multi-step
Cut-off-voltage   14.4 V ± 0.25 V Lithium mode
14.4 V ± 0.25 V SLA/Gel mode
14.7 V ± 0.25 V AGM mode
16.0 V ± 0.25 V Calcium/Boost mode


General

Reverse current   < 0.5 mA
Protection type

  IP 65 (charger)
IP 44 (adapter cable set)

Cable length

  1.70 m (mains cable)
1.60 m (connection cable incl. adapter)

Dimensions   242 x 102 x 60 mm
Weight   850 g (without accessories)
970 g (with accessories)

























































Downloads:















Data sheet
Battery Charger SH-3.150, 12 V, 10 V



Instruction manual
Battery Charger SH-3.150, 12 V, 10 V

Charging characteristics
Battery Charger SH-3.150, 12 V, 10 V

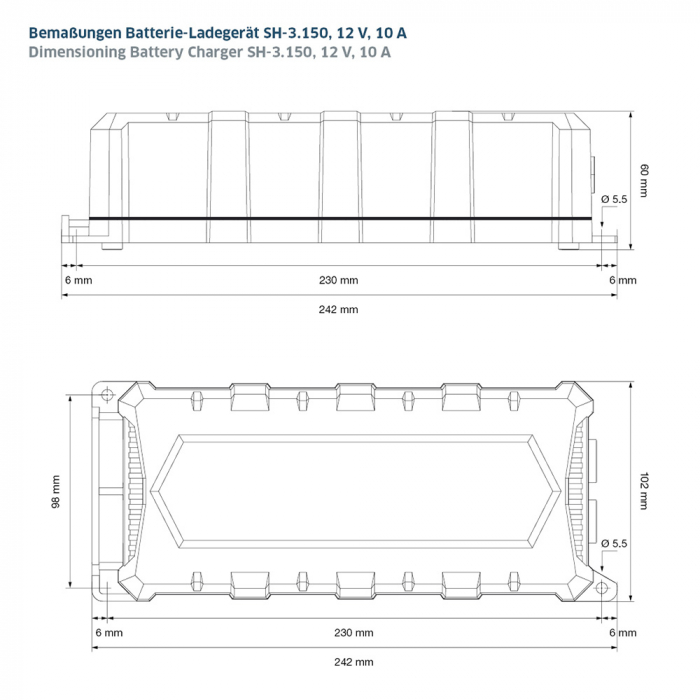

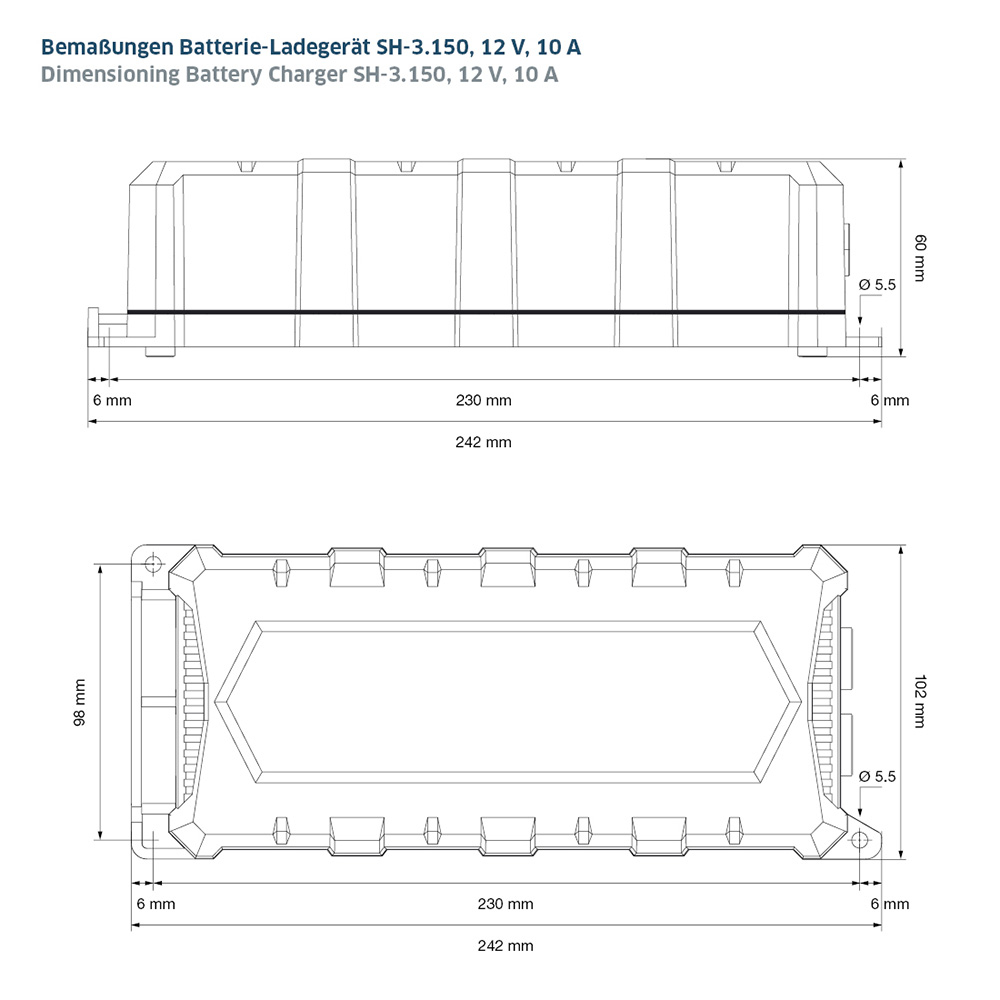

Dimensioning
Battery Charger SH-3.150, 12 V, 10 V



Download PDF Version » Download PDF Version » Download PDF Version »  Download PDF Version »






Recommended products:

3-piece charging adapter set

3-piece charging adapter set


• Simple connection with quick-contact plug
• Water-protected (IP 44)
• Consists of:
  Adapter cable with battery clamps
  Adapter cable with 12 V plug
  Adapter cable with eyelet rings
• Suitable for Staudte Hirsch Battery Chargers
  SH-3.130 and SH-3.150
• Suitable for IVT chargers
  PL-C010P, PL-C004P and PL-782B



Art.Nr.: 911000.A

15,08 EUR (19 % VAT excl.)

Adapter cable with battery clamps

Adapter cable with battery clamps


• Simple connection with quick-contact plug
• water-protected (IP 44)
• Suitable for Staudte Hirsch Battery Chargers
  SH-3.130 and SH-3.150
• Suitable for IVT chargers
  PL-C010P, PL-C004P and PL-782B





Art.Nr.: 911000.K

6,68 EUR (19 % VAT excl.)

Adapter cable with eyelet rings

Adapter cable with eyelet rings


• Simple connection with quick-contact plug
• water-protected (IP 44)

• Suitable for Staudte Hirsch Battery Chargers
  SH-3.130 and SH-3.150
• Suitable for IVT chargers
  PL-C010P, PL-C004P and PL-782B





Art.Nr.: 911000.O

3,86 EUR (19 % VAT excl.)

Adapter cable with 12 V car plug

Adapter cable with 12 V car plug


• Simple connection with quick-contact plug
• Water-protected (IP 44)

• Suitable for Staudte Hirsch Battery Chargers
  SH-3.130 and SH-3.150
• Suitable for IVT chargers
  PL-C010P, PL-C004P and PL-782B




Art.Nr.: 911000.Z

6,68 EUR (19 % VAT excl.)
