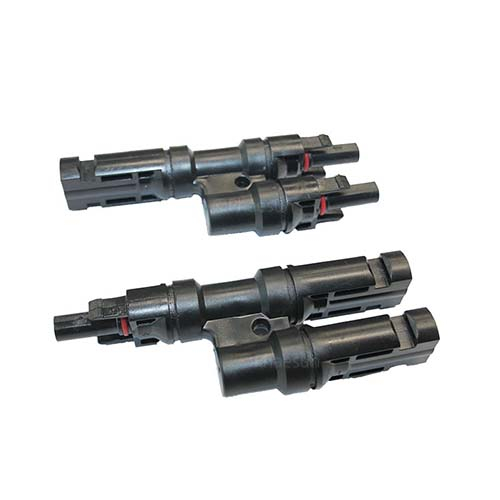

Solar connector Quickclip4 Set 2in1, short

Safe and installation-friendly cabling

For safe and installation-friendly parallel or parallel-serial cabling of PV modules. Pluggable with single-pole MC PV connectors MC4.

Unplugged connections must be protected with a sealing cap.

The most important features

• Snap-in locking
• For safe and installation-friendly parallel or parallel-serial cabling of PV modules
• Proven, long-term stable MC lamina technology

Delivery content

• Solar connector Quickclip4 Set 2in1, short

Technical Data

Connector system	Ø 4 mm
Rated voltage	1000 V DC
Rated current	30 A
Rated impulse voltage	8000 V
Contact resistance	≤ 0.5 mΩ
Ambient temperature	-40 to +90 °C
Degree of protection	IP 67
Insertion force	≤ 50 N
Withdrawal force	≤ 50 N
Contact material	Silver-plated copper
Insulating material	PPO
Dimensions (L × W × H)	109 × 82 × 15 mm
Weight	0.12 kg
