Portable Power Station IVT PS-2000, 2000 W

  • Portable and flexible plug & play solution
  • Ideal for commercial and private use
  • No wiring and no intervention in the vehicle network necessary
  • Included digital sine wave inverter DSW-2000
  • Lithium battery 12.8 V/100 Ah with app monitoring
  • Charging booster 12 V/10 A
  • Solar controller SCplus 25 A
  • 12 V load output, incl. timer and night light function
  • Low: self-discharge and own power consumption
  • Extensive protective functions

Item no. 430090 | EAN 4030072430906

3.396,00 EUR

VAT incl.

Become a sales partner
Request an offer

Power to go anywhere and anytime – 230 V, 12 V, 2 x 5 V USB

The Portable Power Station PS-2000 offers you a self-sufficient power supply at any place and at any time, wherever it is needed: on the road or stationary, in commercial as well as private areas. Consumers with a continuous power of 2000 W can be operated with the PS-2000. For short periods, the power station PS-2000 provides a peak output power of 4000 W.

Plug & Play complete solution

With the Portable Power Station PS-2000, all components are ideally matched to each other. The pre-configured plug & play complete solution is ready for immediate use. The integrated quick connections enable easy charging using solar, charging booster and 230 V mains voltage. The connection cables are included in the scope of delivery. No wiring or intervention in the vehicle network is necessary.

Plug and Play solution: no wiring necessary Continuous output power 2000 W True sine wave LiFeP04-battery with app function Individually configurable Flexibly rechargeable 230 V, 12 V vehicle, solar Suitable for commercial use CE 3 years warranty Made in Europe

Important characteristics and features

Rechargeable with solar power, in the car and on 230 V mains voltage

+
Flexible rechargeable


The battery can be charged flexibly: while driving in the vehicle with the help of an integrated 12 V charging booster, absolutely independently via solar power thanks to the built-in SCplus 25 A solar controller or at any 230 V socket with the included SH-3.150 10 A battery charger.


The charge level of the lithium battery can be read on your smartphone via a Bluetooth interface and a free app.         The charge level of the lithium battery can be read on your smartphone via a Bluetooth interface and a free app. The data (including state of charge, current, voltage, temperature) of the battery management system can be exported and processed externally.
The app is available for Android and iOS systems.



Average charging times of the Power Station PS-2000

Charging facility      Charging time
Charging booster 12 V in the car 10.5 h
2 x solar modul Phaesun 170 W*)   5.8 h
Battery charger 12 V, 10 A 10.5 h
*) with optimum irradiation
Note: The battery charger and the connection cables for the booster and solar modules are included in the scope of delivery.
Flexible rechargeable


The battery can be charged flexibly: while driving in the vehicle with the help of an integrated 12 V charging booster, absolutely independently via solar power thanks to the built-in SCplus 25 A solar controller or at any 230 V socket with the included SH-3.150 10 A battery charger.

The charge level of the lithium battery can be read on your smartphone via a Bluetooth interface and a free app

The charge level of the lithium battery can be read on your smartphone via a Bluetooth interface and a free app. The data (including state of charge, current, voltage, temperature) of the battery management system can be exported and processed externally.
The app is available for Android and iOS systems.



Average charging times of the
Power Station PS-2000

Charging facility      Charging time
Charging booster 12 V in the car 10.5 h
2 x solar modul Phaesun 170 W*)   5.8 h
Battery charger 12 V, 10 A 10.5 h
*) with optimum irradiation
Note: The battery charger and the connection cables for the booster and solar modules are included in the scope of delivery.

Secured current draw: 230 V, 12 V and 2 x 5 V USB load outputs

230 V, 12 V and 2 x 5 V USB load outputs

+
Secured current draw via 230 V safety socket

Connected to the 230 V AC output of the digital sine wave inverter, a pure sine wave alternating voltage can be taken safely. Thanks to galvanic isolation of the input and output stage, no additional fuse protection is necessary when connecting a consumer, even in the commercial sector. The peak output power, which is twice as high (2 s), ensures that even loads with high starting currents can be connected safely and without interference.

Please note:
If a multiple socket outlet is connected and several 230 V consumers are used at the same time, the professional associations stipulate that each additional consumer must be protected with a separate RCD or DI circuit breaker. Please obtain information from your professional association or on the Internet at: www.dguv.de
Secured current draw via 12 V DC socket

The 12 V DC output is controlled via the programmable SCplus solar controller. The integrated timer and night light function enables reliable current draw – even when you are not personally on site, e.g. for operating alarm, lighting or cooling systems in warehouses, allotment gardens, holiday homes or boats, as well as in agriculture for pasture fencing or pumps and much more.
Secured current draw via the two 5 V USB ports (type A)

In addition, two smartphones, tablets, notebooks, battery packs, LED lights and many other small devices can be reliably charged at the two 5 V USB outputs.

The switchable load outputs can be used simultaneously. Charging is possible while the current is being drawn.

Average operating time of electronic devices with the Power Station

Average operating time of electronic devices

+
The operating time of the Power Station PS-2000 can vary greatly depending on which loads are connected. If you operate consumers with lower power, the operating time is extended. If you use several outputs at the same time, it is shortened accordingly.

Average operating time for electronic devices with the Power Station PS-2000

230 V consumer   Operating time
50 W (e.g. laptop charger) 24.5 h
140 W (e.g. e-bike charger)   9.6 h
600 W (e.g. drill)   2.1 h
1200 W (e.g. electric kettle)   1.0 h
2000 W (e.g. fan heater) 37 min

12 V consumer Operating time
50 W (e.g. TV set) 25.0 h
120 W (e.g. compressor) 10.0 h

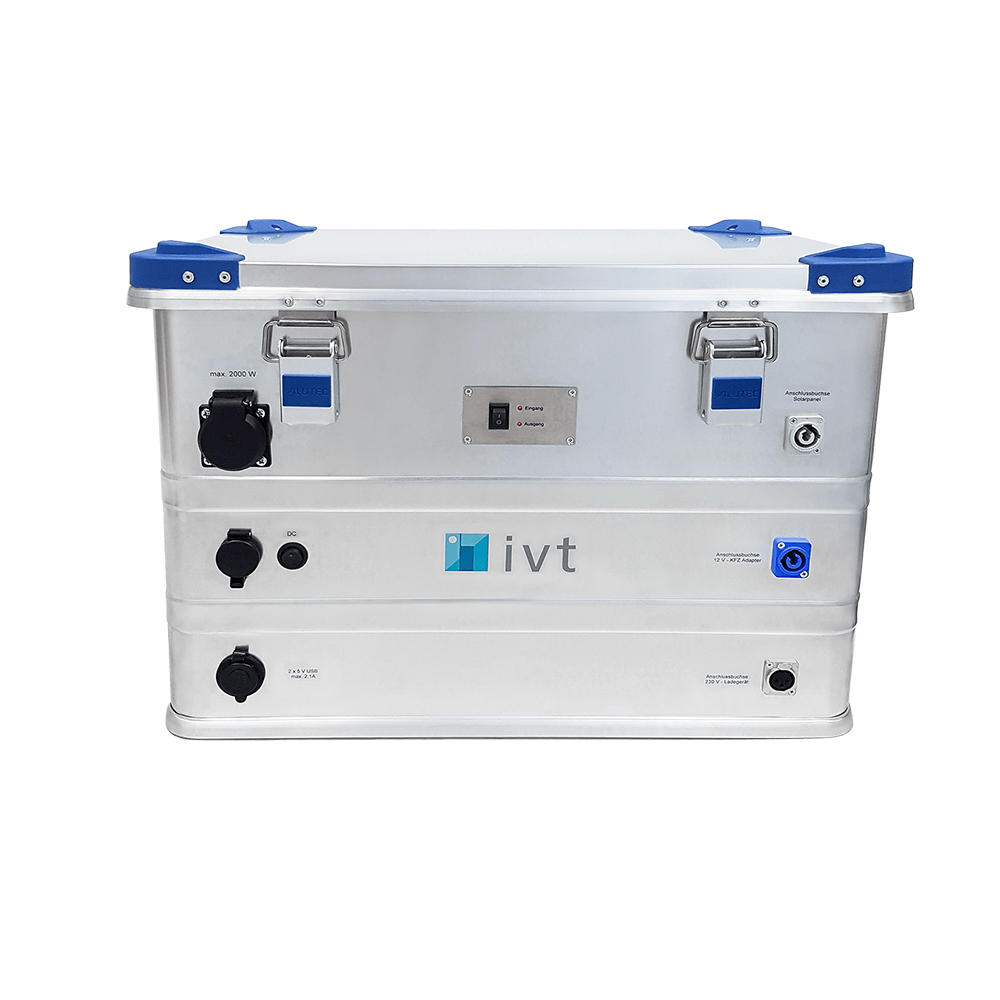

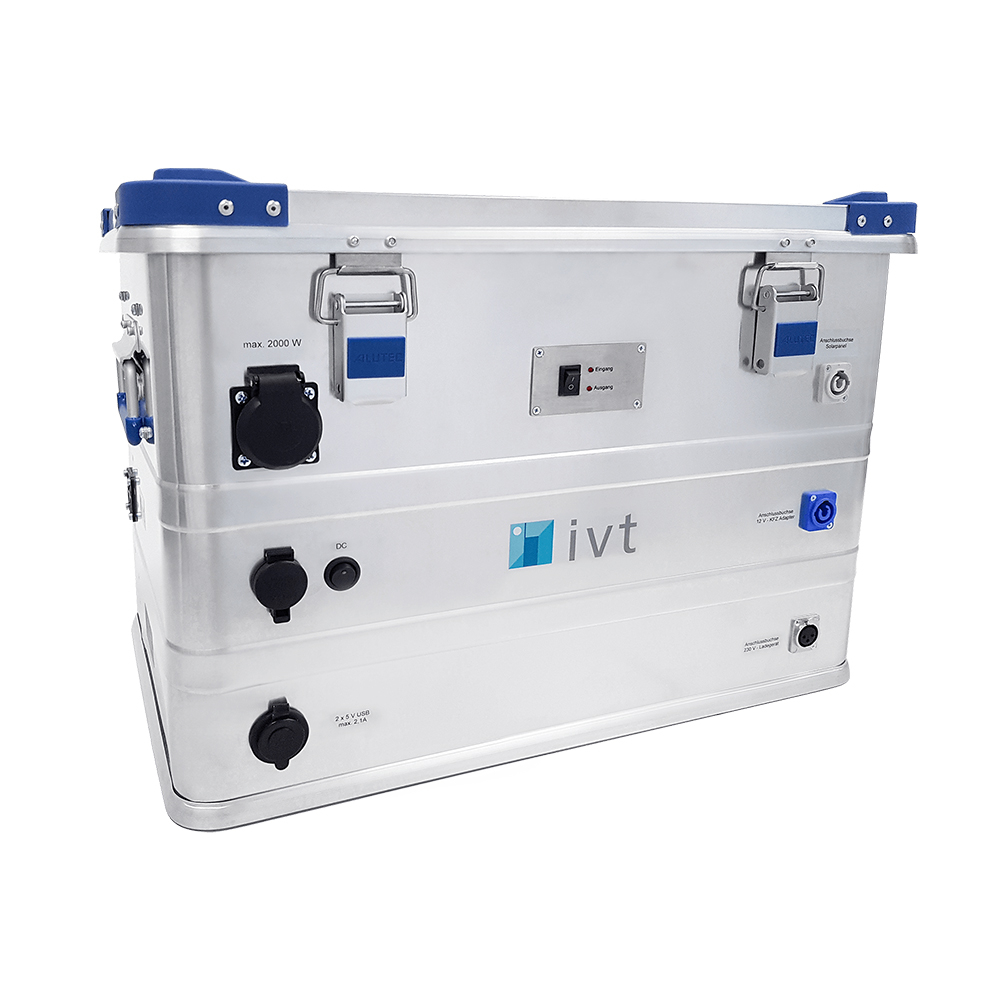

Robust housing with sturdy carrying handle

+
The valuable inside of the power station is protected by an extremely robust metal housing. The corners are additionally reinforced with edge protection. The sturdy carrying handles make it easy to transport to the place of use.

Powerful 12.8 V LiFePO4 battery, 100 Ah with app function

Powerful 12.8 V LiFePO4 battery, 100 Ah

+
The power station is equipped with a powerful, lightweight and durable 12.8 V, 100 Ah special LiFePO4 battery.

The powerful special LiFePO4 battery offers considerable advantages compared to lead batteries with comparable storage capacity:
  • twice the usable capacity
  • a weight saving of approx. 65 % and, last but not least
  • an extremely long service life (2,500 cycles at 80 % depth of discharge) compared to lead batteries (up to 550 cycles at 50 % depth of discharge).

Individually configurable according to your needs

Individually configurable

+
Individual equipment for your application

The Power Stations can be adapted to your needs on request. On request, individual components of the existing Power Station can be exchanged, omitted or additional ones installed, e.g.

  • Inverter (capacity and type)
  • Battery (capacity and type)
  • Charger (amperage)
  • Size of the box
  • Cable lengths
  • and much more.

We will be happy to advise you.

Extended manufacturer warranty

+
3 years warranty 8 years warranty
Electronic devices LiFePO4 battery

IVT products are manufactured to the highest quality and according to strict quality guidelines. Therefore, we are so convinced of the longevity of our products that we extend the legally required manufacturer's warranty free of charge: 3 years on electronic devices, 8 years on LiFePO4 batteries.

Delivery content

+
  • Power Station PS-2000 (fully equipped)
  • Battery charger SH-3.150, 12 V, 10 A incl. mains cable and adapter, 3.3 m
  • Connection cable for solar module, 4 m, H07RN-F 2 x 2.5 mm2 (max. 50 V/20 A)
  • Connection cable for charging booster for 12 V car socket, 2.5 m, 2 x 1.5 mm2

Components of the PS-2000 Mobile Power Station


 Detailed information on the components


Digital sine wave inverter DSW-2000, 12 V, 2000 W

Iinverter DSW-2000, 12 V, 2000 W

+
Digital sine wave inverter IVT DSW-2000
Digital sine wave inverter IVT DSW-2000, 12 V, 2000 W
Item no. 430107
To the product >
Absolutely self-sufficient thanks to real sine wave AC voltage

The high-quality digital sine wave inverter DSW-2000 reliably and precisely converts an input voltage of 12 V DC into a real sine wave AC voltage of 230 V/50 Hz. Independent of the public power grid, even sensitive consumers as well as devices with high starting currents can be supplied with power safely and without interference.

The most important features and characteristics
  • Output voltage: Real sine wave alternating voltage 230 V/50 Hz
  • Continuous output power 2000 W
  • High peak output power 4000 W
  • Galvanic isolation of input and output stage
  • Power start function for loads with high starting current
  • Switchable power saving functions (sleep, standby)
  • Dynamic deep discharge protection
  • Extensive protection functions

LiFePO4 Akku 12,8 V/100 Ah

+

LiFePO4 Premium Batterie FORSTER 12,8 V/100 Ah

LiFePO4 Premium Batterie FORSTER 12,8 V/100 Ah 200 A-BMS-2.0 | F12-100XB
Item no. 920029
To the product>

Charging booster 12 V, 10 A

+
Charging booster 12 V, 10 A
Schaudt Ladebooster WA 1208
Item no. 920001
To the product >

Optimum charge

The integrated charge booster serves to optimally charge the installed battery.



Solar controller SCplus 25 A

+
Solar Controller SCplus IVT 25 A

Solar Controller SCplus IVT 25 A
Item no. 200039
To the product >
Reliable solar controller for optimal charging

The extremely efficient and reliable serial SCplus solar controller from IVT is characterized above all by its versatility. It offers you 4 predefined charging characteristics, which are optimally matched to all common battery types. The load output has various special functions that can be set individually. In addition, certain charging parameters can be programmed via the free software and the data can be evaluated.

The most important features and characteristics
  • Serial solar charge controller: precise, battery-saving charging
  • Pulse-width modulated (PWM) charge control
  • Predefined charging characteristics
  • Switchable load output (on/off)
  • Timer function
  • Night light function
  • High efficiency max. 98
  • Standby function < 10 mA own current consumption
  • Microprocessor controlled charging
  • Multi-stage charging process
  • Extensive protection functions

Battery Charger Staudte Hirsch SH-3.150, 12 V, 10 A

Battery Charger SH-3.150, 12 V, 10 A

+
Battery charger Staudte Hirsch SH-3.150
Battery charger Staudte Hirsch SH-3.150, 12 V, 10 A
Item no. 331500
To the product >
Facial charging with the help of fully automatic 10 A battery charger

The fully automatic battery charger SH-3.150 is designed for gentle charging and optimum maintenance of 12 V lead and 12 V calcium batteries as well as 12 V lithium batteries (LiFePO4) with integrated battery management system (BMS).

The most important features and characteristics
  • Suitable for 12 V lead-acid and calcium batteries from 20 Ah upwards
  • Suitable for 12 V lithium batteries with BMS from 25 Ah
  • Multi-stage, microprocessor-controlled charging process
  • Adjustable charging modes (AGM, acid/gel, lithium and calcium/boost)
  • Regeneration mode for deeply discharged batteries
  • Trickle charge and auto memory function
  • Protection against short circuit, reverse polarity and overcharging
  • Clear operating and display panel
  • Easy operation via one button
  • Jet-proof and dust-proof housing (IP 65)
  • Charging adapter for PS-2000 with XLR connector

Additional benefit
The charger can also be used for charging various vehicle batteries. The charging adapters with battery clamps and ring lugs are also included.

"Great product, well constructed and reliable".

Joachim Meyer, Getmain GmbH (customer)

Technical Data

Input
System voltage / supply 12.8 V/100 Ah LiFePO4
Deep discharge protection voltage, idling 10.5 V
Deep discharge protection voltage, adjustable 9 - 12 V
Charge via 230 V supply max. 10 A
Charge via 12 V supply ca. 9 A
Charge via solar panel max. 44 V/20 A
Nominal input power, DSW 10 W
Nominal input power, SCplus 25 A 0.4 W
230 V AC output
Output connector 1 x grounding-type socket, IP 54
Output voltage (+- 2 %) 230 Veff
Frequency (+- 1 %) 50 Hz
Wave form Sinusoidal
Continuous output current 8.7 Aeff
Continuous output power 2000 VA
Peak output power (max. 2 s) 4000 VA
Operating time at nominal load ca. 35 minutes
Nominal efficiency 90 %
12 V DC output
Output connector 1 x 12 V vehicle socket
Output current max. 10 A
Continuous output power 120 VA
Operating time at nominal load 10.5 hours
Deep discharge protection via SCplus output 10.5 V
5 V USB output
Output connector 2 x USB type A
Output current max. 2.1 A
Continuous output power 10.5 VA
General
Temperature range, load 0 °C to 55 °C
Temperature range, discharge -20 °C to 55 °C
IP protection IP 20
Dimensions (L x W x H) 580 x 385 x 410 mm
Weight ca. 26 kg
