Name: Ex-protected LED Work Light ATEXBEAM PL-AT803A, 3 W, Li-Ion battery
Brand: Atexbeam
SKU: 312232
Price: 295.67 EUR
Availability: InStock

Ex-protected LED Work Light – High Performance with Maximum Flexibility

Ex Certification:

I M2 Ex ib I Mb
II 2 G Ex ib IIC T4 Gb
II 2 D Ex ib IIIC T135°C Db (Temperature range: 0 ~ 40°C)

The explosion-proof LED work light ATEXBEAM PL-AT803A has been developed in accordance with the latest ATEX 95 Directive 2014/34/EU for explosion protection. Approved for hazardous zones 1, 2, 21, and 22, it provides reliable safety for maintenance work as well as for rescue and security operations in environments at risk of explosion due to flammable gases, vapours, mists, or dusts.
EU-Type Examination Certificate >

The ATEXBEAM PL-AT803A impresses with its carefully designed functionality.
To meet individual requirements in various working angles, the continuously adjustable lamp head allows precise alignment of the light beam from 0° to 90°.
Its lightweight design makes it especially handy and ideal for mobile use.

The work light features two brightness levels, offering either maximum light output or extended battery life.
An integrated flashing function can attract attention in hazardous situations and indicate potential risks.

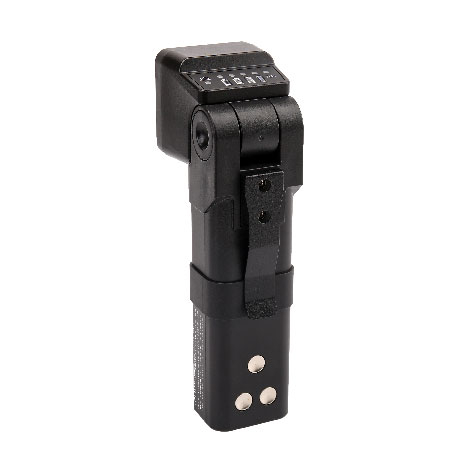

The rear clip allows attachment to work clothing (e.g., firefighter jackets).
With the integrated battery indicator, you can always keep track of the remaining charge. In high-performance mode, the operating time is 9 hours, and in energy-saving mode, 18 hours.

With this explosion-proof work light, you are fully prepared for operations in hazardous environments!

Applications:

Firefighting, technical relief organisations, police, petrol stations, freight transport, mining, industry, distilleries, and more.

Important characteristics and features

Explosion protection Danger Zone 1, 2, 21, 22

The Ex light ATEXBEAM PL-AT803A is the ideal companion for professional rescue and recovery operations, as well as maintenance and repair work in explosive atmospheres caused by a mixture of air and flammable gases, vapours, or mists.

Ex certification for gas (Zone 1, 2) and dust (Zone 21, 22)

I M2 Ex ib I Mb
II 2 G Ex ib IIC T4 Gb
II 2 D Ex ib IIIC T135°C Db (Temperature range: 0 ~ 40°C)

3 W high-power LED with a long life time

Equipped with a high-performance 3 W Luxeon LED, the Ex light ensures optimal visibility for up to 18 hours. Depending on your brightness requirements, two lighting modes are available. In the maximum brightness setting, the light reliably provides 9 hours of neutral white illumination, while in the energy-efficient dimmed mode, it delivers up to 18 hours of glare-free working light.

Mode	Function	Luminosity	Runtime
1	Max. Luminosity	100 %	9 h
2	Dimmed mode	50 %	18 h

Equipped with a powerful 3 W Luxeon LED, the Ex-light guarantees best visibility for up to 20 hours. Depending on the brightness requirement, two light modes are available.

In the maximum brightness level, the luminaire reliably emits neutral white for 9 hours, and in energy-efficient dimmed mode, up to 20 hours of glare-free work light.

Mode	Function
1 \| Max. Luminosity	Luminosity 100% Runtime 9 h
2 \| Dimmed mode	Luminosity 50 % Runtime 20 h

90° swiveling lamp head

The continuously adjustable lamp head allows precise alignment of the light beam within a 0°–90° range.

Emergency light function included

Outside the Ex zone, the light can also be used as an emergency light.

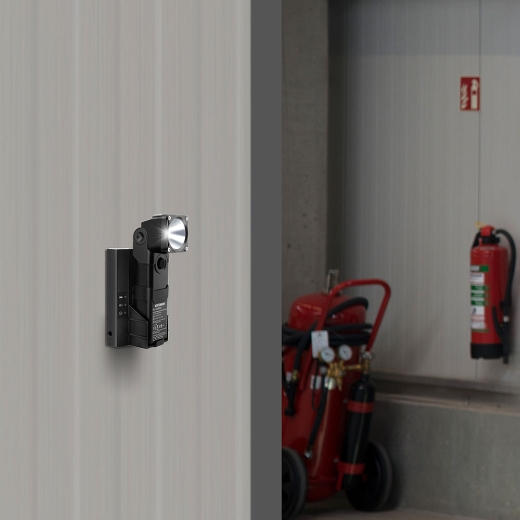

When the PL-AT803 is switched on and placed in its charging cradle, the emergency light function is automatically activated in the event of a power failure. Once mains power is restored, the lamp switches off automatically. This makes the Ex light a reliable source of illumination during power outages – for example, in industrial and manufacturing halls, machine rooms, or other areas.

Li-ion battery – High quality, light, powerful

The versatile Ex light is equipped with a highly efficient Li-Ion battery, protected against overheating, overcharge, and deep discharge. The maintenance-free Li-Ion battery, with its high energy density, ensures a long service life while significantly reducing the weight of the light.

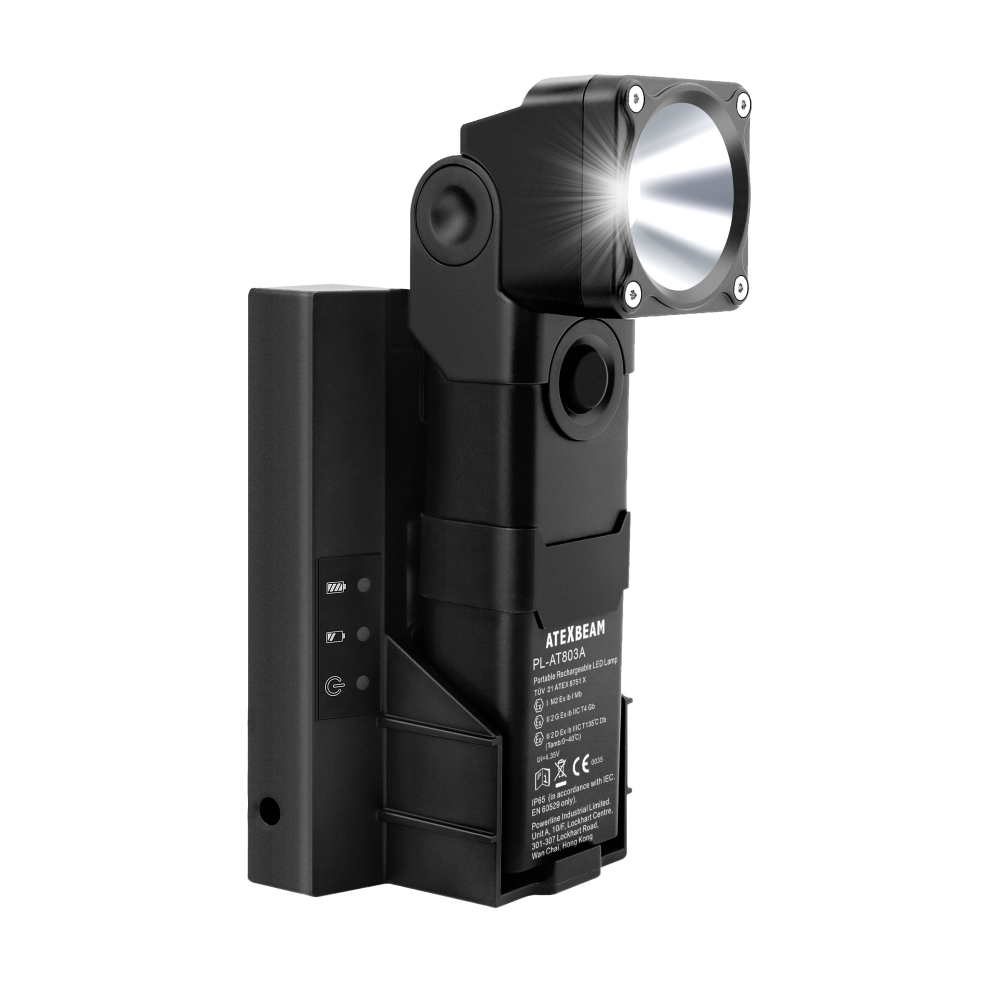

In the practical charging cradle, the Ex light can be securely fixed and charged at the same time. During charging, the current battery level can be read via three LEDs on the charging station, while a flashing LED on the back of the Ex light indicates a pending deep discharge during operation. Thanks to its low self-discharge, the Ex work light is always ready for use. The 230 V mains adapter and charging cradle are included in the delivery.

Please note:

The charging station is not explosion-proof and must not be placed or operated in an explosive atmosphere.

Easy to use – highly visible charge status indicators

The rubber-coated push button allows for comfortable operation even while wearing work gloves. It is used to switch the light on and off and to select the desired lighting mode. During operation, a flashing LED signals a pending deep discharge of the battery in advance.

Indestructible dust and waterproof housing – IP 65

Rugged, dust- and waterproof housing – IP 65

The housing of the PL-AT803A is antistatic, extremely robust, and made of impact- and shock-resistant heatproof plastic with additional glass fibre reinforcement. The high-quality LED module is protected against potential damage by a hardened clear glass cover.

Thanks to its dust- and waterproof housing (IP 65), the Ex light can be used both indoors and outdoors.

3 year manufacturer warranty

The ATEXBEAM AT-803A distributed by IVT is manufactured to a high standard and in accordance with strict quality guidelines. We are so convinced of the durability of this Ex light that we are also extending the statutory manufacturer's warranty for this product by an additional year free of charge.

Delivery content

Explosion-proof LED work light PL-AT803A
Charging cradle with retaining strap
230 V mains adapter
User manual in DE, GB

Technical Data

ATEX certification	TÜV 21 ATEX 8751 X
Ex zone	1, 2, 21, 22
Ex identification	I M2 Ex ib I Mb II 2 G Ex ib IIC T4 Gb II 2 D Ex ib IIIC T135°C Db (Temperature range: 0 ~ 40°C)
Current supply	Li-Ion battery 3.6 V \| 6700 mAh
Light sources	1 × 3 W high-performance LED
Power consumption (max.)	3 W
Luminous flux (max.)	ca. 220 lm
Efficiency	73 lm/W
Color temperature	4500 K \| neutral white
Lifetime LED	30,000 h
Lightmodes	1: Max. Luminosity 100 % 2: Dimmed 50 %
Run time (max.)	9 h (100 %) 18 h (50 %)
Tilt angle lamp head	90°
Emergency light function	Yes
Charging adapter Power supply	100 - 240 V AC, 50/60 Hz, 12 V / 1000 mA
Charging time (max.)	15 h
Charging indicator	Yes
Discharge protection	Yes
Overcharge protection	Yes
Overheat protection	Yes
Protection class	lll
Protection type	IP 65 according (Lamp) IP 20 (Charging cradle)
Temperature range	0 °C to +40 °C
Material	Polycarbonate (Housing) Tempered clear glass (Reflector protection)
Color	Black
Dimensions (L x W x H)	55 x 55 x 210 mm (Lamp) 75 x 70 x 148 (Charging cradle)
Weight	363 g (Lamp) 224 g (Charging cradle)
