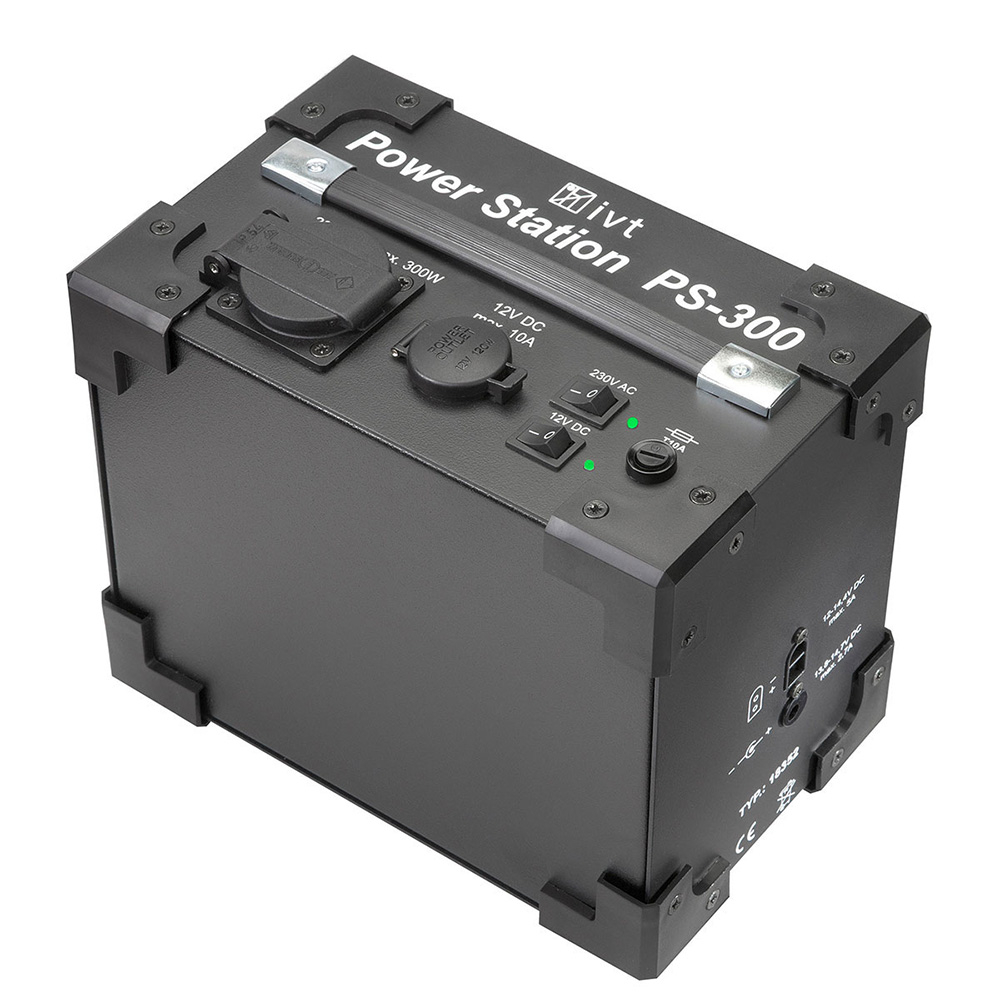

Power Station IVT PS-300 with integrated sine wave inverter

Power Station IVT PS-300 with integrated sine wave inverter

Zoom image
Important characteristics and features:



• Pure sine wave alternating voltage 230 V/50 Hz
• Power start function
• 2 load outputs: 230 V AC and 12 V DC
• Extensive protection for both outputs
• High efficiency
• Robust case with sturdy carrying handle
• Powerful 12 V AGM battery, 20 Ah

Product currently not available!



442,89 EUR

19 % VAT incl.

Product no.: 430100
EAN: 4030072401111

Power Station IVT PS-300 with integrated sine wave inverter
Power Station IVT PS-300 with integrated sine wave inverter
Power Station IVT PS-300 with integrated sine wave inverter
Power Station IVT PS-300 with integrated sine wave inverter
Power Station IVT PS-300 with integrated sine wave inverter
Power Station IVT PS-300 with integrated sine wave inverter
Power Station IVT PS-300 with integrated sine wave inverter
Power Station IVT PS-300 with integrated sine wave inverter





  CE Made in the EU

  3 year manufacturer warranty




Electricity to take away - Power to go.
Pure sine wave AC voltage on the go


The PS-300 Mobile Power Station provides you with an independent power supply wherever you need it: at leisure, at work, at camping or in the Tiny House. No matter whether you want to operate 12 V or 230 V devices on the road, with this Power Station you are well prepared for every situation. Because the PS-300 has a 12 V DC and 230 V AC output. Both can be used simultaneously or separately.

The integrated 300 W sine wave inverter provides a true sine wave voltage. The Power Station guarantees that your sensitive consumers are operated trouble-free and safely. For example, you can always and everywhere use your laptop, set up a satellite, TV or music system, carry out minor repairs with power tools or, with the help of a spotlight, complete the final work despite the darkness.

The start of consumers up to max. 600 W with high inrush current is supported by the power start function of the integrated inverter. This makes it possible on the road with a mobile cooling device for chilled drinks on trips.

The high-quality AGM battery 12 V / 20 Ah can be recharged via the 230 V mains or in the vehicle with 12 V. Two LEDs individually indicate the current status of the Power Station. The PS-300 is short-circuit proof and protected against deep discharge and overload.




The most important characteristics and features:


 Pure sine wave alternating voltage 230 V / 50 Hz


Digital controls convert 12 V or 24 V direct current to
real sinusoidal output voltage of 230 V/50 Hz:





With this pure sine wave voltage, even sensitive consumers such as computers, TV, audio systems, laptops, electronic tools can be operated safely and without interference.





 Microprocessor controlled electronics


The microprocessor-controlled electronics automatically monitor and regulate the most important operating parameters such as input voltage and frequency. This ensures the constant stability of the output voltage.





 Continuous power 300 W - peak output power 600 W


Especially for consumers who need a high inrush current (for example, pumps, compressors, or cool box), starting does not always go smoothly.


For this reason, the Power Station is designed to provide twice the continuous output power in the short term.





 Power start function for consumers with high inrush current


The integrated sine wave inverter is also equipped with the power start function. Advantage: Consumers with high switch-on or starting current are actuated shortly after each other several times with maximum output power of the inverter, thus facilitating a reliable start-up of powerful consumers.





 Extensive protection functions for both load outputs


The Power Station works absolutely reliably and safely even under the toughest conditions. As standard, the two outputs (230 V AC and 12 V DC) are independently protected against overload and short circuit.

An impending deep discharge of the battery is indicated by visual warning (LED) at both load outputs and prevented by automatic shutdown. In the event of overtemperature, the integrated inverter switches off automatically.





 Safe and functional: 12 V DC and 230 V AC load output


The Power Station is equipped as standard with a 12 V DC and a 230 V AC load output. The two outputs can be used separately or simultaneously.



Plug type F, C
For power take-off you have a 230 V earthed socket, suitable for the plug types C (Euro plug) and F (Schukostecker®) available.


12 V DC
In addition, the Power Station is equipped with a 12 V DC output connection.

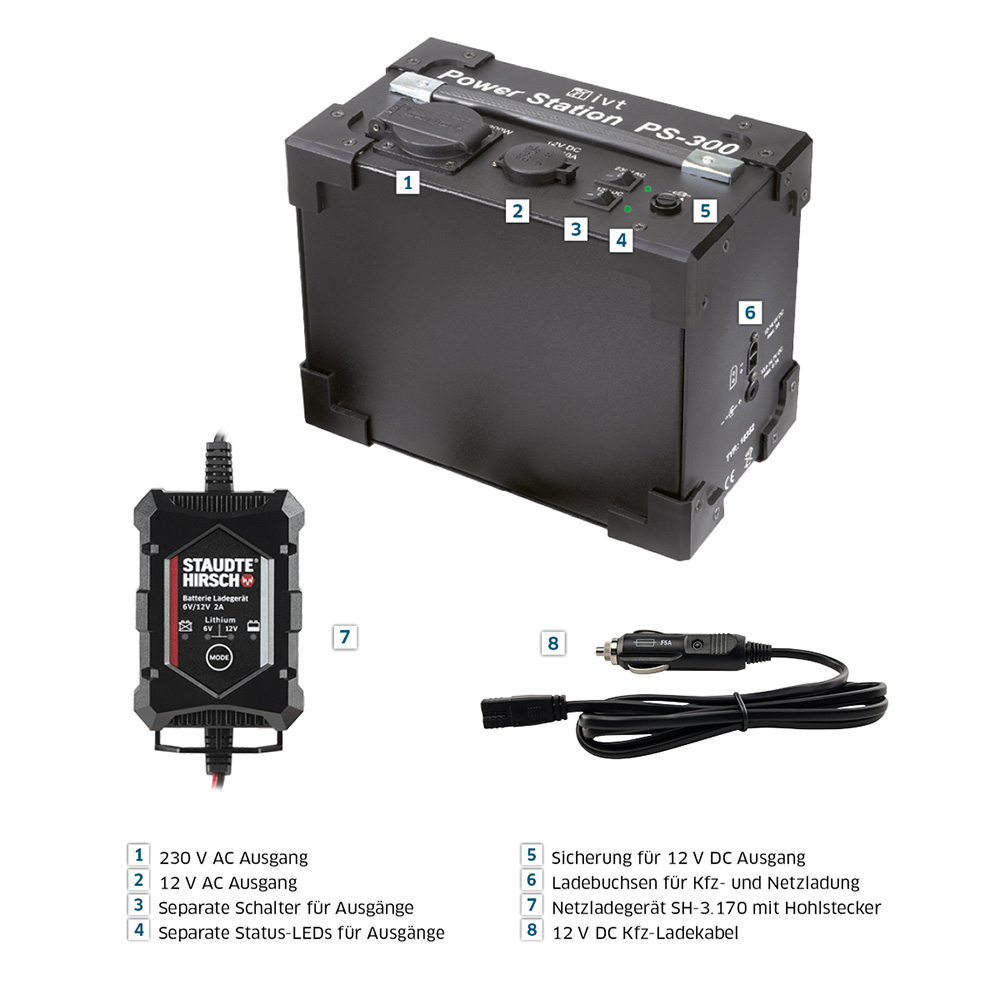

 Operation and display elements






1  230 V AC output
2  12 V DC output
3
Separate switches for outputs
4  Separate status LEDs for outputs
5
Fuse for 12 V DC output
6  Charging sockets for car and
    mains charging

7  Mains Charger SH-3.170 with
    barrel connector
8  12 V DC car charger adapter






 Average operating time for electronic devices with the Power Station



The operating time of the PS-300 Power Station can vary widely depending on which loads are connected. For a fully charged battery, it will last approximately 30 minutes at 300 W (230 V AC output) or approximately 85 minutes at 10 A (12 V DC output). If you operate consumers with lower power, the operating time is extended accordingly. If you use both outputs at the same time, it shortens accordingly.


Average operating time for electronic devices with the Power Station:

• Commercially available televisions with a screen diameter of 102 cm: approx. 3 h
• Stereo systems with subwoofer: approx. 3 h
• 40 W lighting: approx. 3

• Flash unit with 180 Ws: about 900 flashes





 Robust case with sturdy carrying handle



The valuable interior of the Power Station is protected by an extremely robust metal housing. The corners are additionally reinforced with an edge protection. The sturdy carrying handle facilitates transport to the place of use.





 Powerful 12 V AGM battery, 20 Ah


The Power Station is equipped with a powerful and reliable 12 V, 20 Ah AGM (Lead Vies) battery. Of course we offer a suitable replacement battery for this high quality device.



Suitable AGM battery, 12 V, 20 Ah für Power Station PS-300

To the product >







 3 year manufacturer warranty



  IVT products are manufactured to a high quality and following strict quality guidelines.
We are certain about the longevity so that we add another year to the statutory
manufacturer warranty free of charge.







 Delivery content


• Power Station PS-300
• 230 V mains charger

• 12 V car charger

• Operation instructions in DE, GB, FR, NL







Technical data



Power Station PS-300




12 V DC output


Output   12 V car socket
Output current max.   10 A
Run time max.   85 min. at 10 A and full battery charge
Idle current   4 mA (with active output)
Deep discharge protection   yes
Fuse   T 10 A (accessible from the outside)

230 V AC output

Output connector   shock-proof socket
Output voltage   225 V AC (- 8 % / + 5 %)
Frequency   50 Hz
Waveform   Pure sine wave
Continuous output current   1,4 Aeff
Continuous output power   300 VA
Peak output power   600 VA
Power factor   cos phi > 0,8
Run time max.   30 min. at 300 VA and full battery charge
No-load current   15 mA (with active output)
Deep discharge protection   yes
Overload shutdown          yes

General

Battery type   AGM battery, 12 V, 20 Ah
Charge via power supply   Battery Trainer Pb
(100 – 240 V AC, 50/60 Hz), max. 1.5 A

Charge via 12 V car adapter        12 – 14.4 V DC, max. 5 A
Dimension (L x W x H)                240 x 145 x 215 mm
Weight   10.4 kg





























































 Downloads:













Brochure Digital Sinusoidal AC inverters




Instruction Manual
Power Station PS-300











Download PDF Version » Download PDF Version »
Browse online now »
