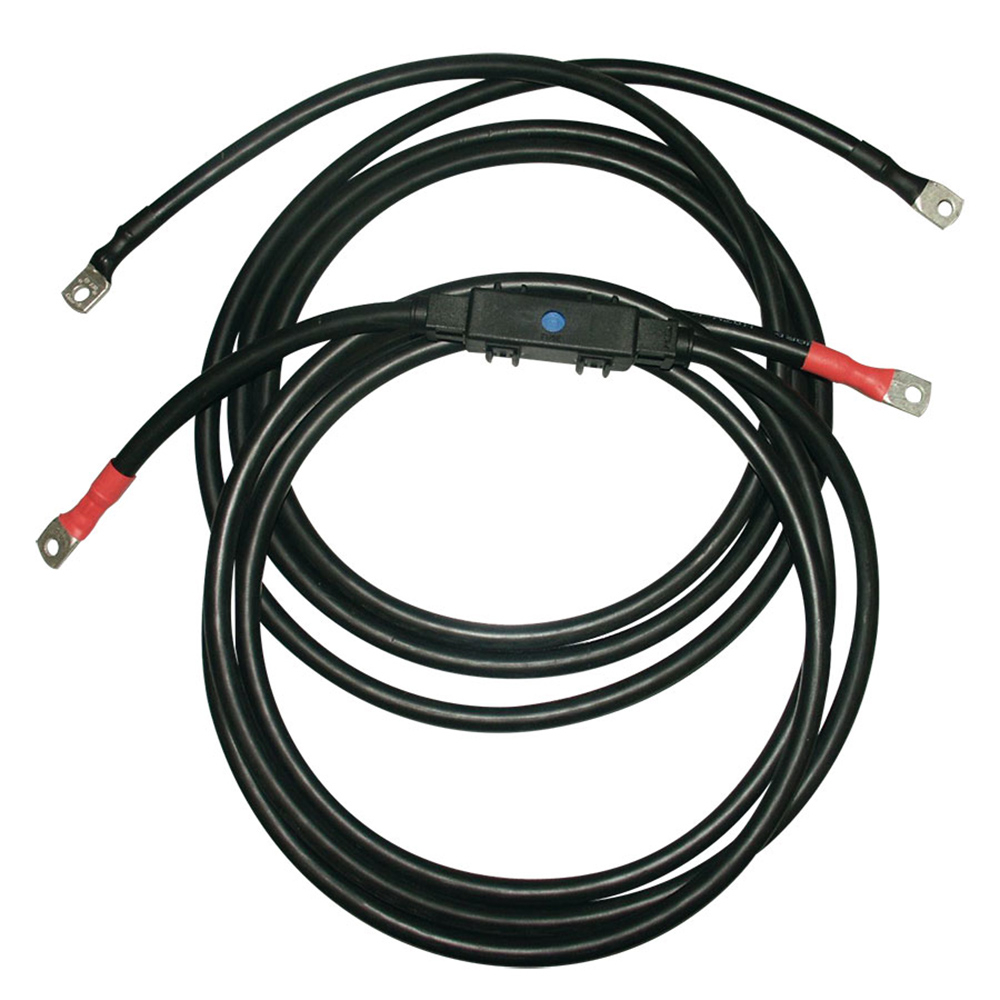

Connection cable IVT 3 m 35 mm2 for SW-inverter 2000 W
Zoom image |
• Conductor cross-section: 35 mm2
• Cable length: 3 m
• Preassembled with cable end sleeves and eyelet rings
• Color-coded cable ends
• Including fuse holder with 200 A fuse
IVT connection cables are safe and regarding the conductor’s cross section and cable length
exactly attuned to the respective inverter. The high quality workmanship of our connection cables
assure a particularly long life span even at high encumbrance.
The cable set is already fitted with matching eyelet rings and cable end sleeves for connection
to the battery and to the inverter.
The color-coded cable ends (red = connection to positive pol / black = connection to negative pol)
support a quick and polarity-safe connection to battery and inverter.
All original IVT connection cables will be delivered including the fuse holder with a 200 A fuse.
Technical data
Conductor cross section: 35 mm²
Cable diameter: 7 mm
Cable length (incl. connectors): 3 m
Weight: 2.12 kg
Conductor material: Cu
This product is compatible with:
![]() |
Sinus Inverter IVT SW-2000/12 V
|
![]() |
Sinus Inverter IVT SW-2000/24 V
|
![]() |
Sinus Inverter SW-2000-Synchron/12 V
|
![]() |
Sinus Inverter IVT SW-2000-Synchron/24 V
|
