Important characteristics and features:



• Parallel switchable
• Real sinusoidal alternating current 230 V/50 Hz
• High peak output power 4000 W
• Galvanic isolation
• Standby and sleep function
• Dynamic deep discharge protection
• Power start function for loads with high start-up current
• Power and temperature-controlled fan
• Country-specific power plug adapter available on request



754,62 EUR

19 % VAT excl.

Product no.: 430109

Digital Sinusoidal AC Inverter DSW-2000-Synchron, 12 V, 2000 W
Digital Sinusoidal AC Inverter DSW-2000-Synchron, 12 V, 2000 W
Digital Sinusoidal AC Inverter DSW-2000-Synchron, 12 V, 2000 W
Digital Sinusoidal AC Inverter DSW-2000-Synchron, 12 V, 2000 W
Digital Sinusoidal AC Inverter DSW-2000-Synchron, 12 V, 2000 W








Completely independent real sinusoidal alternating current

The digital sinusoidal AC inverter DSW-2000, 12 V reliably and accurately converts 12 V direct voltage into a real 230 V sinusoidal alternating voltage of 230 V. In this way, even sensitive devices such as multimedia devices, coffee machines, hair dryers or chargers can be supplied with power independently from the public mains supply as if they were plugged into the mains socket at home - in your utility vehicle, motor home, on the campsite or in your fishing cottage.

The synchronous version of the DSW-2000 is particularly well suited for operation of high-power devices such as electric tools or electronic heaters as well as devices with a high start-up current such as pumps, compressors, fridges or air conditioning.

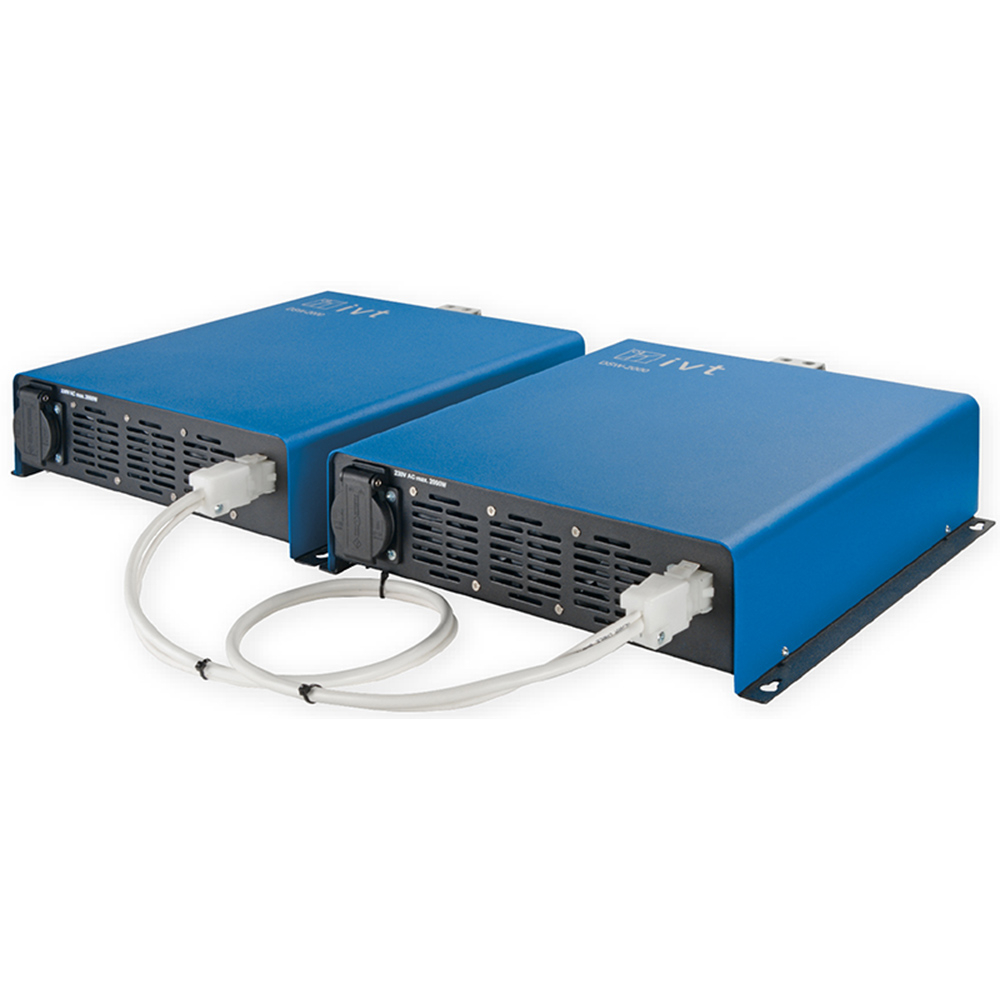

Two DSW-2000-Synchron devices can be connected with each other to form a powerful 4000 W system using a separately available connection cable. This gives a continuous output power of 4000 W and a peak output power of 8000 W
.

Please keep in mind that each DSW-2000-Synchron requires its own connection cable set when used synchronously.





Important characteristics and features:

 Parallel switchable: Continuous power 4000 W - peak output power 8000 W




Especially devices that require a high start-up current do not always start smoothly. For this reason, all DSW AC inverters are designed in such a way that they deliver twice the normal continuous output for a short time.

Two DSW-2000-Synchron devices can be connected with each other to form a powerful 4000 W system using a separately available connection cable. This gives a continuous output power of 4000 W and a peak output power of 8000 W.

The two AC inverters can also be used individually with the respective continuous power..



Please keep in mind that each DSW-2000-Synchron requires its own connection cable set for the battery when used synchronously.



 Real sinusoidal alternating current 230 V/50 Hz


Digital controls convert 12 V or 24 V direct current to
real sinusoidal output voltage of 230 V/50 Hz:






 Microprocessor-controlled electronics


A microprocessor forms the heart of the AC inverter. This control center monitors the most important parameters of the electronic system such as input voltage and frequency. This ensures constant stability of the output voltage.



 Power start function for loads with high start-up current


All DSW AC inverters have a power start function as standard.


Start-up current:

When switching on a device, the start-up current can reach 5 to 10 times the specified nominal current.
The power start-up function tries to compensate for this by briefly starting 5 times with maximum output power.







 E-certification: Suitable for permanent installation in vehicles


  The digital sinusoidal AC inverters meet the legal requirements of the ECE regulations and therefore have E-certification. They are suitable for permanent installation in all vehicles such as passenger cars, utility vehicles or other vehicles with an on-board voltage of 12 V.




 Galvanic isolation of input and output stage




Galvanic isolation (see figure above):
There is no electric conductivity between the input and output circuit thanks to galvanic isolation. Therefore, personal security equipment (RCCB) is not necessary even when connecting a 230 V device in a commercial setting.


Please note:
When connecting a multi-outlet power strip and simultaneously using several 230 V devices, the workers' compensation board dictates that each additional device must be RCCB-protected. Please contact your workers' compensation board or go to www.bgbau-medien.de



 Comprehensive safety functions


IVT inverters provide protection against polarity reversal and over-voltage at the input stage as well as against short-circuit and overload at the output stage. The inverter switches off automatically when overheating.



 Dynamic deep discharge protection


On one hand, the dynamic deep discharge protection ensures that the battery is protected from deep discharge; on the other hand, it allows devices with high start-up current since the switch-off limit is lowered briefly.

Using the optionally available remote controls FB-04, FB-05 and the webbox-LCD it is also possible to adapt the deep discharge protection individually. A voltage between 9 V and 12 V (for 12 V models) or between 18 V and 24 V (for 24 V models) can be selected.

If the set limit value is reached, the AC inverter first indicates this with flashing of the input LED. Subsequently, the power output of the AC inverter switches off automatically. The power output switches on again only when the battery has reached the required switch-on voltage again.




 Optional energy-saving functions: Standby, sleep








Standby function:
If the AC inverter is not used continuously, the optional standby function can be used
to reduce the internal energy consumption of the AC inverter by approx. 90%. To do this, only
DIP-switch 2 (see figure) needs to be moved. The device now checks approx. every 10 seconds
whether a load is present. If the AC inverter detects a load above the standby limit,
it switches the 230 V AC output on to return to the normal operating mode.













Sleep function:

All AC inverters of the DSW series also have a sleep function.
If the power output is not used for more than 10 minutes, the AC inverter
switches off automatically and does no longer consume power.

The device is switched on again by switching it off and on again directly at the device or using
the remote switch FS-01, FS-02 when it is in a location that is difficult to access.

The sleep function can be activated or deactivated directly at the device using DIP-switch 1 (see figure). This prevents unnecessary discharging of the battery.







 Operating and indicating elements

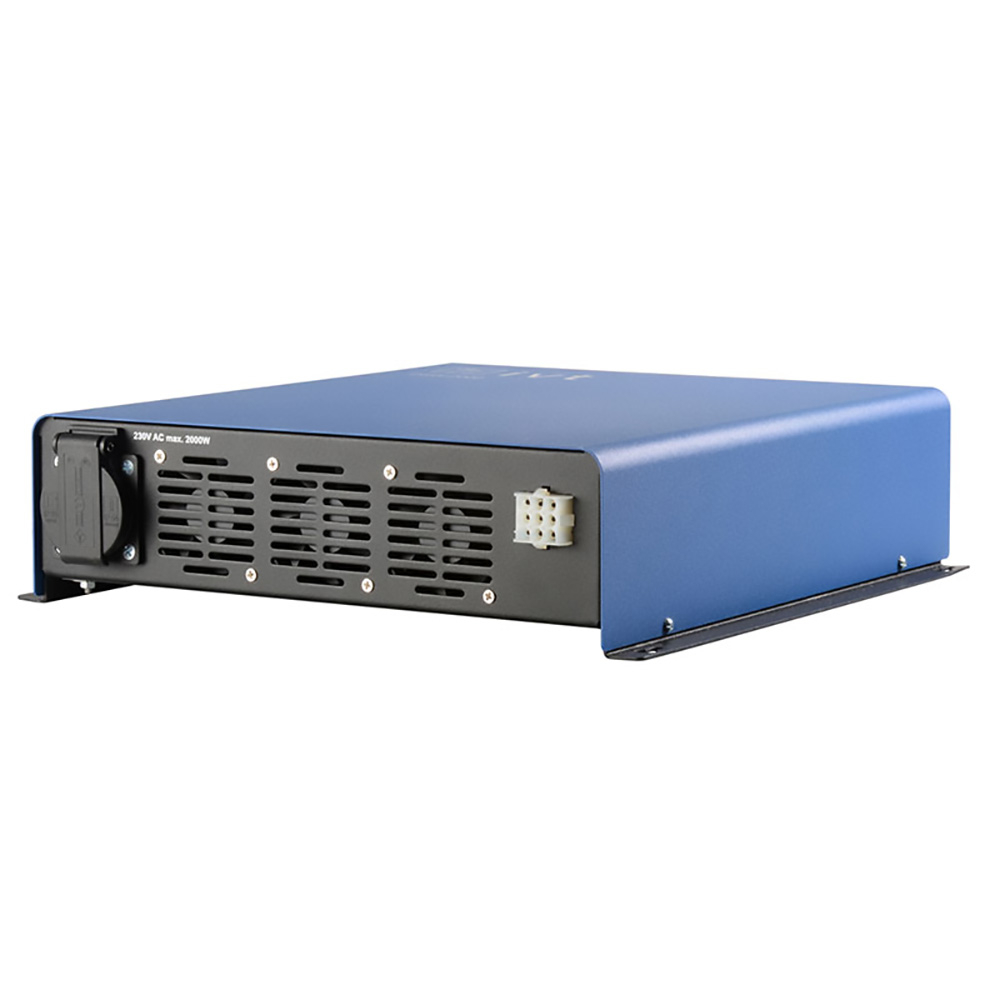

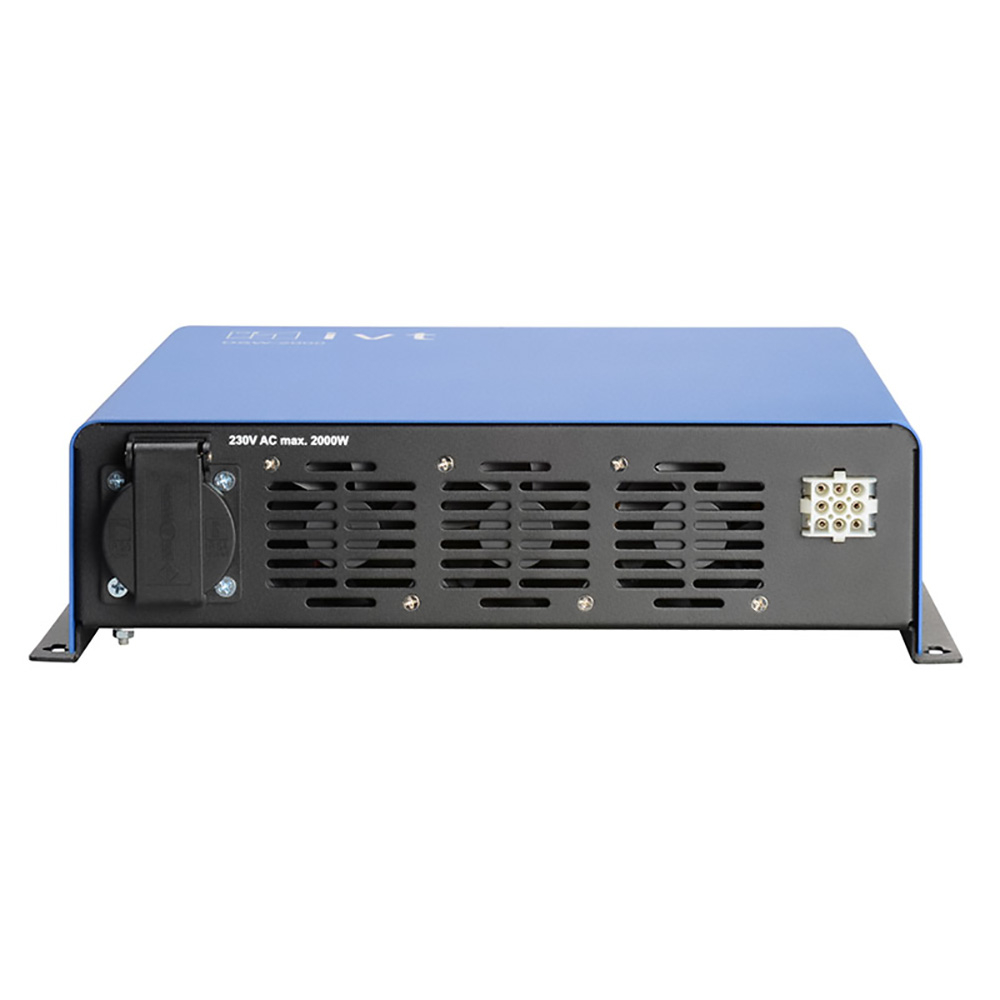

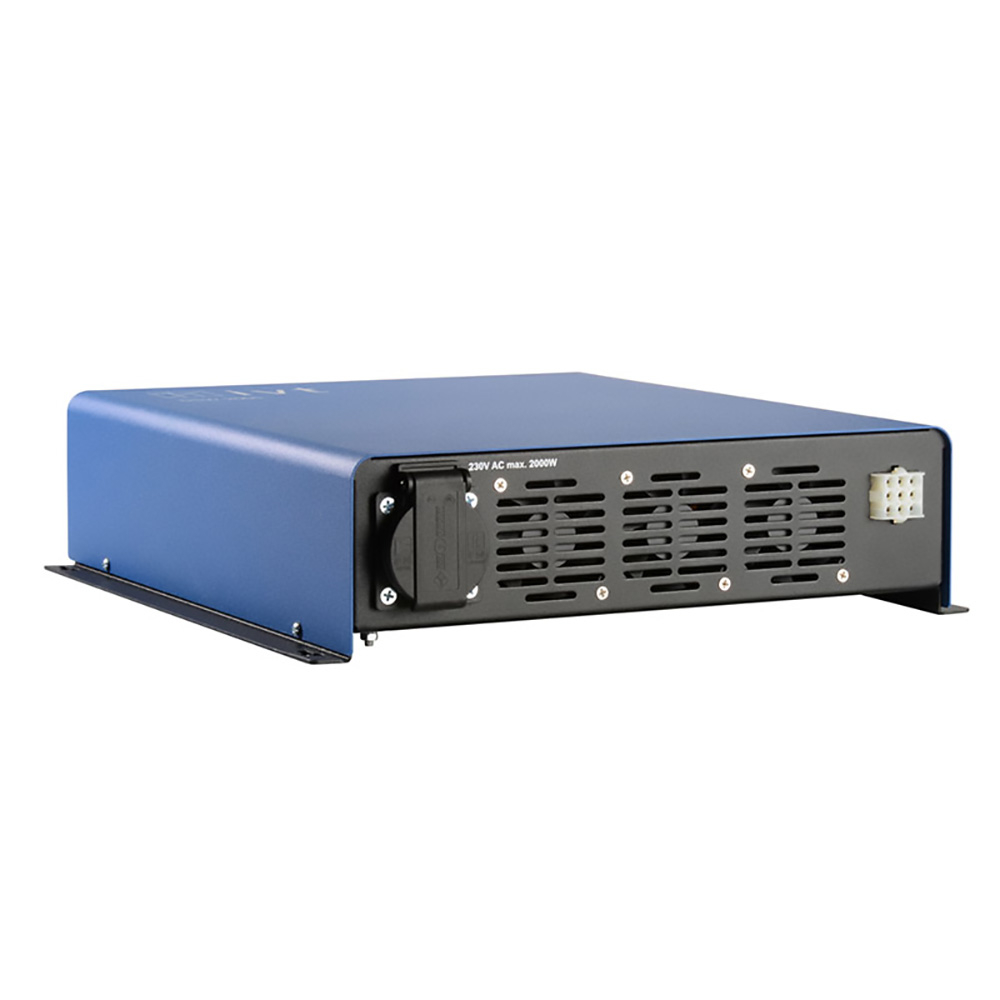

1  Solid metal housing
2  Metal rails for secure installation
3  230 V grounding-type socket
4  Temperature and power-controlled fan

5  Socket for synchronous connection cable

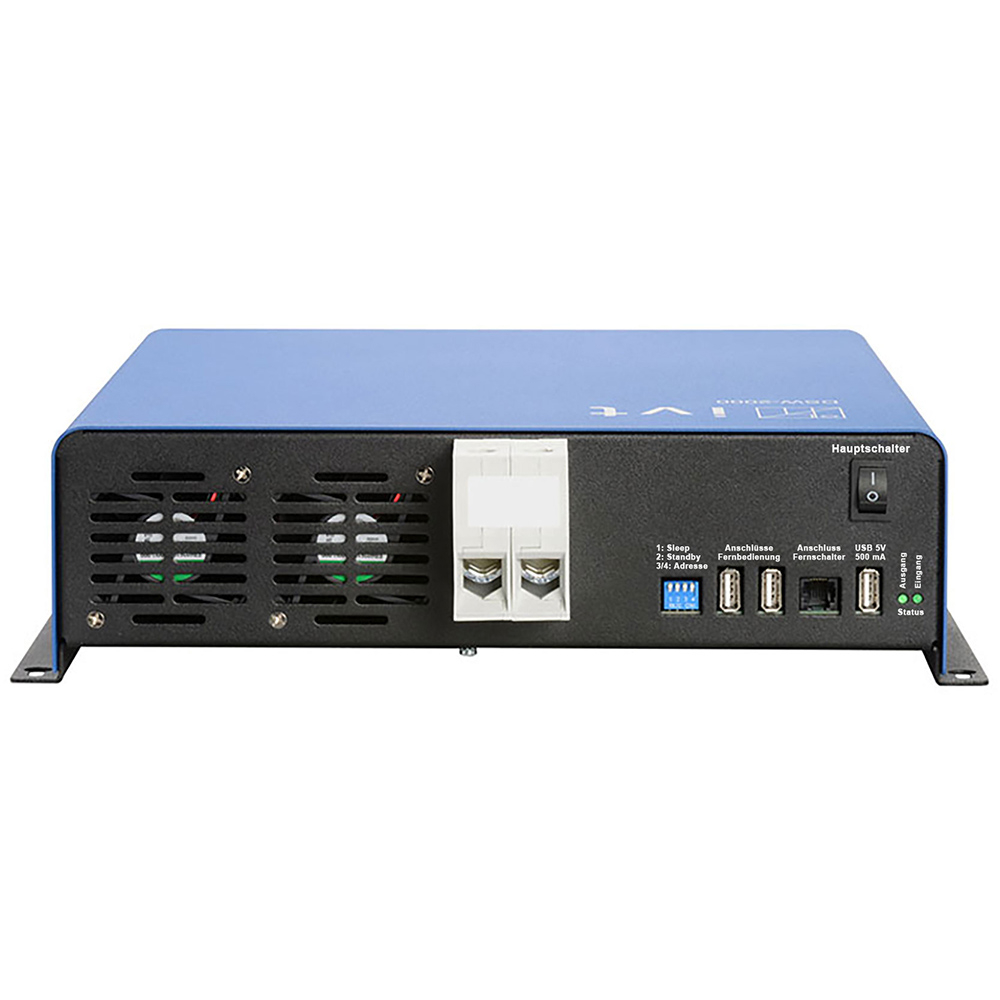

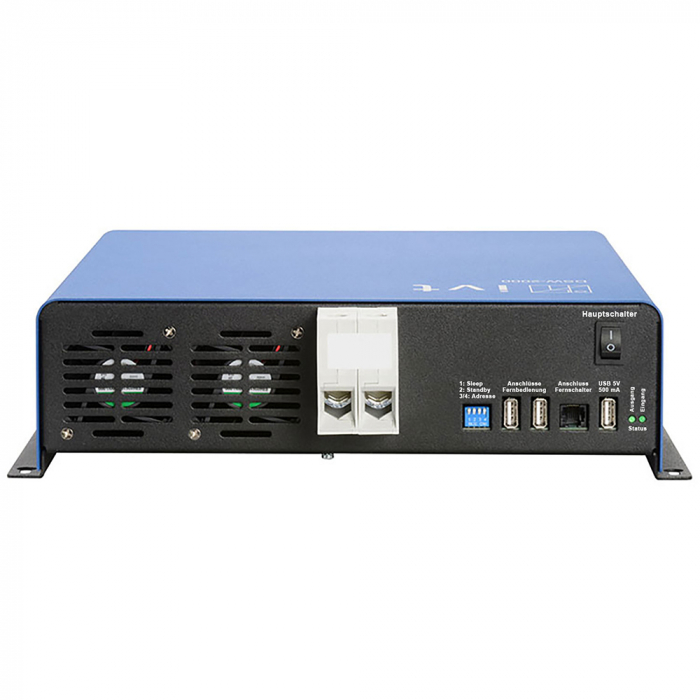

1  Temperature and power-controlled fan
2  12 V or 24 V terminal clip for battery
3  DIP-switch for sleep/standby function
    and addressing
4  Connectors for remote control FB-04, FB-05
5  Connector for remote switch FS-01, FS-02
6  5 V USB socket
7  Indicator for input and
    output voltage
8  Main switch ON/OFF








 Remote on/off switch: Available as option







Remote switch FS-01, attachment version   Remote switch FS-02, inbuilt version


AC inverters are often installed in location that are difficult to access during later operation. All DSW AC inverters can be switched on and off at a suitable location using the remote switches FS-01 (attachment version) and FS-02 (inbuilt version) In this case, the remote switch replaces the main switch at the AC inverter.



 Remote control: Individual control and monitoring of up to 4 devices









Remote control FB-04, with cable   Remote control FB-04, wireless Webbox-LCD, PC version


Using the optionally available remote controls FB-04 (with cable), FB-05 (wireless) and the webbox-LCD) operation in an existing computer network) it is also possible to adapt the deep discharge protection individually.

With the 12 V models, a voltage between 9 V and 12 V cable be selected, while a voltage between 18 V and 24 V can be selected with the 24 V models.

The remote controls and the webbox-LCD also have the advantage that up to 4 devices (AC inverters of IVT DSW series, solar controllers of MPPTplus+ series) can be controlled and monitored individually.




 Safe output - 230 V grounding-type socket




  Plug type: F, C
All digital sinusoidal AC inverters are equipped with a 230 V grounding-type socket
suitable for plug types C (Euro plug) and F (Schuko plug®) as standard.




Plug type: G and plug type E, C
Furthermore, all DSW AC inverters are also available with socket suitable for plug type G
(e.g. United Kingdom) and plug types E, C (France, many Eastern European countries).





We are happy to make any other country-specific adaptation upon request.


Information about socket standards and nominal voltages in Europe >



 5 V USB socket as standard


All DSW AC inverters have a 5 V USB socket for power supply to suitable devices such as mobile phones, tablets, cameras or navigation systems.



 Power and temperature-controlled fan


The power and temperature-controlled fan minimizes the noise of the AC inverter since it is only activated when necessary.



 Lightweight and powerful


The DSW AC inverters stand out due to their low weight.
Common AC inverters are often equipped with large ring transformers. This makes them heavy and difficult to handle. In contrast to this, the microprocessor-controlled IVT AC inverters function digitally thanks to innovative technology: large, heavy components are obsolete and are replaced with small and powerful ones.




 Solid metal housing


The valuable inner workings of the AC inverter are protected by a solid and stable metal housing.
The AC inverter can be installed securely everywhere thanks to the installation rail.




 Fitting connection cable sets


For a safe and fault-free operation of the DSW AC inverters, we recommend to use original IVT connection cables.

Their diameter is exactly fitted to the respective AC inverter.
The high-quality production of our connection cables guarantees a very long operating life even with high loads.

The cable set is prefabricated with appropriate ring lugs and end splices for connection to the battery and the
AC inverter. All original IVT connection cables are delivered including fuse holder and 200 A fuse.





Please note:

   Each DSW-2000-Synchron requires its own connection cable set for the battery
   when used synchronously.
   Please always use at least one cable with a diameter of 50 mm2 for connection of the 12 V
   version of the DSW-2000-Synchron.






Connection cable 1 m 50 mm2 for DSW AC inverters 2000 W, 12 V

To the product >

Connection cable 2 m 50 mm2 for DSW AC inverters 2000 W, 12 V

To the product >

Connection cable 3 m 50 mm2 for DSW AC inverters 2000 W, 12 V

To the product >







Suitable synchronous connection cable
Two DSW-2000-Synchron can be used in simultaneously using the synchronous connection cable. This doubles the power of the system to 4000 W.






Synchronous connection cable for DSW-2000-Synchron, 1 m

To the product >



 3 year manufacturer warranty


  IVT products are manufactured to a high quality and following strict quality guidelines.
We are certain about the longevity so that we add another year to the statutory
manufacturer warranty free of charge.




 Delivery



Digital sinusoidal AC inverter IVT DSW-2000-Synchron, 12 V
Operating instructions DE, EN, FR, NL


Please order the connection cables separately.




Please note:

   Each DSW-2000-Synchron requires its own connection cable set for the battery
   when used synchronously.
   Please always use at least one cable with a diameter of 50 mm2 for connection of the 12 V
   version of the DSW-2000-Synchron.















Technical data



Digital Sinusoidal AC Inverter DSW-2000-Synchron/12 V




Input


Nominal voltage   12 V

Voltage range DC
  11 - 16 V

Nominal input current   200 A

Input current may.
  248 A

Deep discharge protection voltage, idling   10.5 V

Deep discharge protection voltage, nominal   9.5 V

Deep discharge protection voltage, adjustable*   9 - 12 V

Advance warning
of deep discharge protection switch-off
  1 V
above switch-off voltage

Switch-on voltage   12.5 V

Over-voltage switch-off   16 V

Nominal power consumption, idling
  10 W

Nominal power consumption, standby   0.4 W

Output

Output voltage AC (± 2 %)
  230 Veff
Frequency (± 1 %)
  50 Hz
Wave form   Sinusoidal
Continuous output voltage   8.7 Aeff

Continuous output power
  2000 VA
Peak output power (max. 2 s)
  4000 VA
Power factor   cos phi > 0.8
Nominal efficiency   90 %
Standby activation, output power   < 50 VA

General

Input connector   Screw terminal
Output connector   Isolated ground socket
Suitable for plug type   F, C
Output connector USB (type A)   5 V/500 mA DC
Temperature range (66 % nominal power)
Temperature range (100 % nominal power)
  -25 °C bis +60 °C
-25 °C bis +40 °C

Sleep function   optional
Standby function
  optional
Galvanic isolation (input/output)   Yes
Power start function   Yes
E-certification   Yes
Remotely controllable   Yes
Air fan   Yes

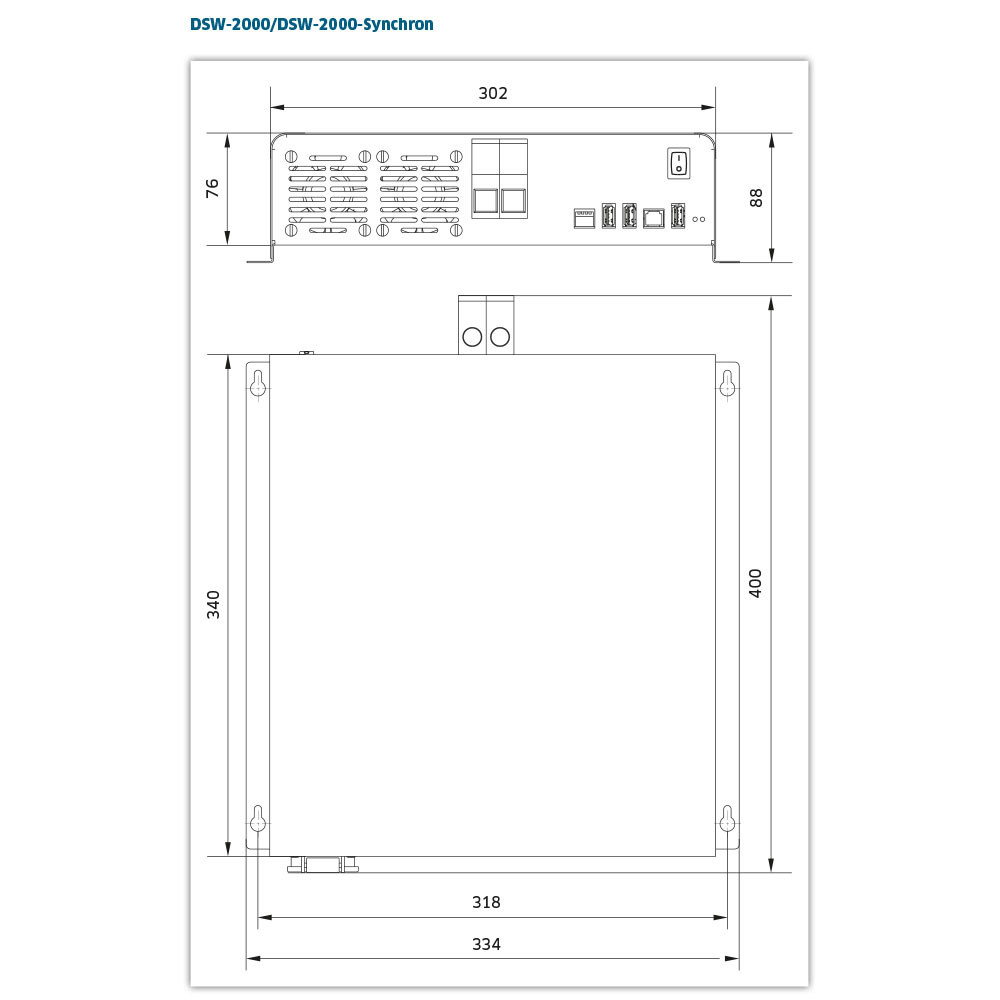

Dimensions (Length x Width x Height)   391 x 334 x 88 mm
Weight
  5.2 kg


*only with remote control FB-04, FB-05 or webbox








Downloads:












Brochure Digital Sinusoidal AC inverters

Operating instructions
DSW-2000-Synchron/12 V

Declaration of Conformity


Download PDF Version » Download PDF Version »  Download PDF Version »
Browse online now »
