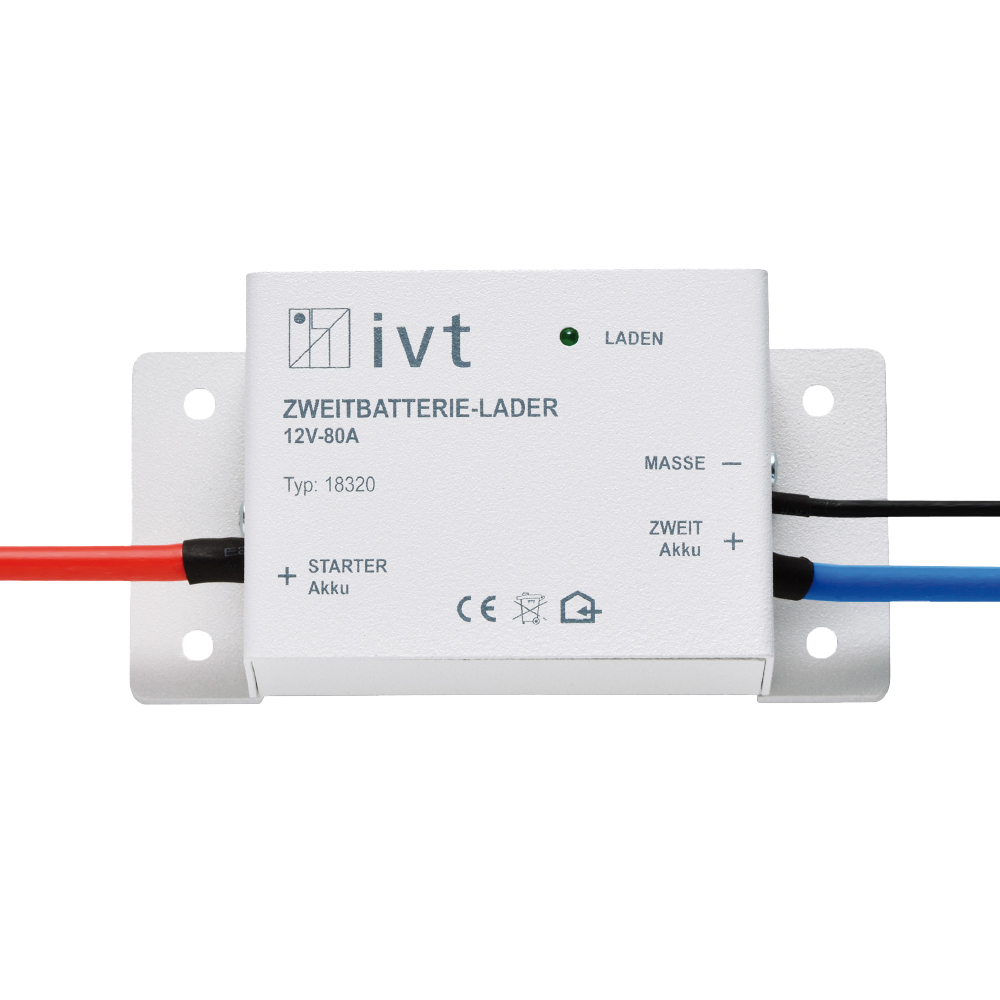

Second battery charger 12 V, 80 A

Second battery charger 12 V, 80 A

Zoom image
Important characteristics and features:



• Suitable for all 12 V lead batteries up to 500 Ah
• Intelligent charging managment of starter and second battery
• Protects the starter battery of your vehicle
• Suitable for 12 V solar isle systems
• E-mark certified


37,65 EUR

19 % VAT excl.

Product no.: 900003

Second battery charger 12 V, 80 A
Second battery charger 12 V, 80 A




Recommended application:












Intelligent charging management between starter and secondary battery

By virtue of the intelligent charging management of the second battery charger the energy produced at peak time can be stored easily and effectively inside a secondary battery.

The second battery charger regulates the primary charging into the main battery. If this one is full the device automatically switches to the second battery. Thus, both batteries within your solar isle system or your vehicle will be charged.

If the battery voltage of the main battery drops below 12.8 V the connection between the two batteries will be interrupted automatically in order to protect them. Current can still be withdrawn from the second battery. It is essential that insignificant electrical consumers are only connected to the secondary battery.

The electronic is suitable for all 12 V lead batteries. The switching capacity of the electronic is sufficient for batteries up to 500 Ah. The second battery charger is E-mark certified and thus, suitable for permanent mounting is all vehicles licensed for public traffic.

Application possibilities:
Solar isle systems as well as private cars, motor homes, mobile homes, boat, tractor, bus, truck, construction vehicles and many others.


More informations:

 Application in a vehicle


Second Battery Charger in vehicles




The use of a second battery charger becomes reasonable in the case an inverter or other 12 V electrical consumers are often operated in a vehicle. In order to prevent an excessive discharging of the starter battery it is recommended to install an additional battery together with a second battery charger.

Please be aware that the inverter or 12 V electrical consumers should only be connected to the secondary battery. Thus, even if the secondary battery is discharged, the motor can start with the aid of the primary/starter battery.




 Application within a solar isle system


Second Battery Charger within a solar isle system




By virtue of the intelligent charging management of the second battery charger the energy produced during peak time can be stored easily and effectively inside a secondary battery. With this, you can always ensure the energy supply for particularly important electrical consumers in a very simply manner.

Example of use:
Important electrical consumers such as, alarm system or cooling units, which must function at all times should be connected to the primary battery. The secondary battery supplies less important electrical consumers such as, TV or radio with power.




 3 year manufacturer warranty


  IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge.





 Delivery content


• Second Battery Charger 12 V, 80 A
• Operation manual in DE, GB, FR, NL








Technical data



Second Battery Charger 12 V, 80 A


Battery voltage   12 V DC (2x)
Max. switching current
  80 A (max. 5 min.)
Normal load   60 A

Max. voltage
  16 V DC
Operation voltage    0.6 V
Current consumption   5 mA
Operation current   300 mA
Secondary charging starts at   13.6 V
Secondary charging switches off at   12.8 V
Dimensions (L x W x H)   125 x 62 x 50 mm
Weight   400 g

Order no.   900003







Downloads:








Brochure
charging technology

Brochure Digital
Sine Wave Inverter

Brochure
Solar technology


Download PDF » Download PDF » Download PDF »
Read online now »   Read online now »








Instruction manual
Second battery charger

Download PDF »
