Vibration Damper Set for DSW-inverters

Vibration Damper Set for DSW-inverters

Zoom image
Important characteristics and features:


• Protects against shocks and vibrations
Natural rubber
M6
Incl. 8 self-locking nuts and 8 washers

12,56 EUR

19 % VAT excl.

Product no.: 430117

Vibration Damper Set for DSW-inverters
Vibration Damper Set for DSW-inverters
Vibration Damper Set for DSW-inverters


• Protects against shocks and vibrations
Natural rubber
M6
Incl. 8 self-locking nuts and 8 washers

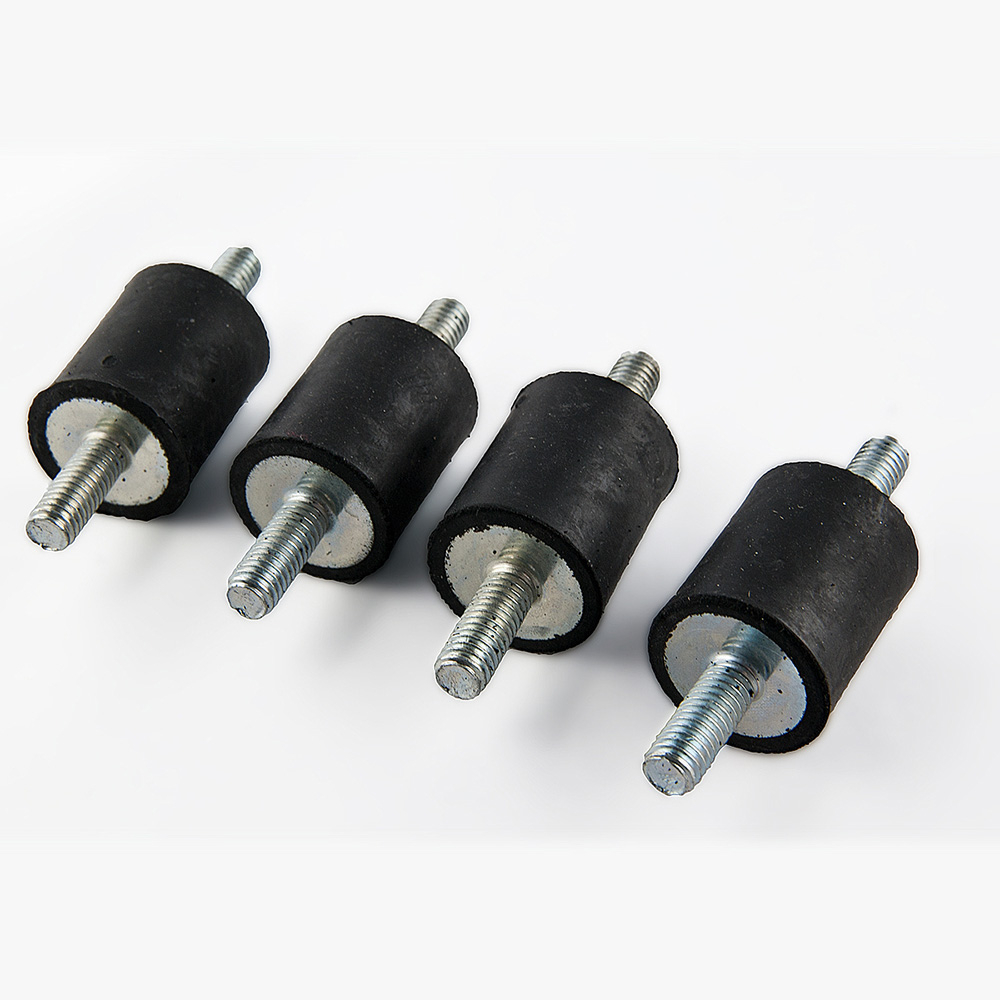

The vibration dampers protect your inverter against shocks and vibrations. Basically,
we recommend the use of vibration dampers in applications with extreme conditions of shock.
An absorption grade of up to 77 % will be achieved, while the life span of your inverter will be

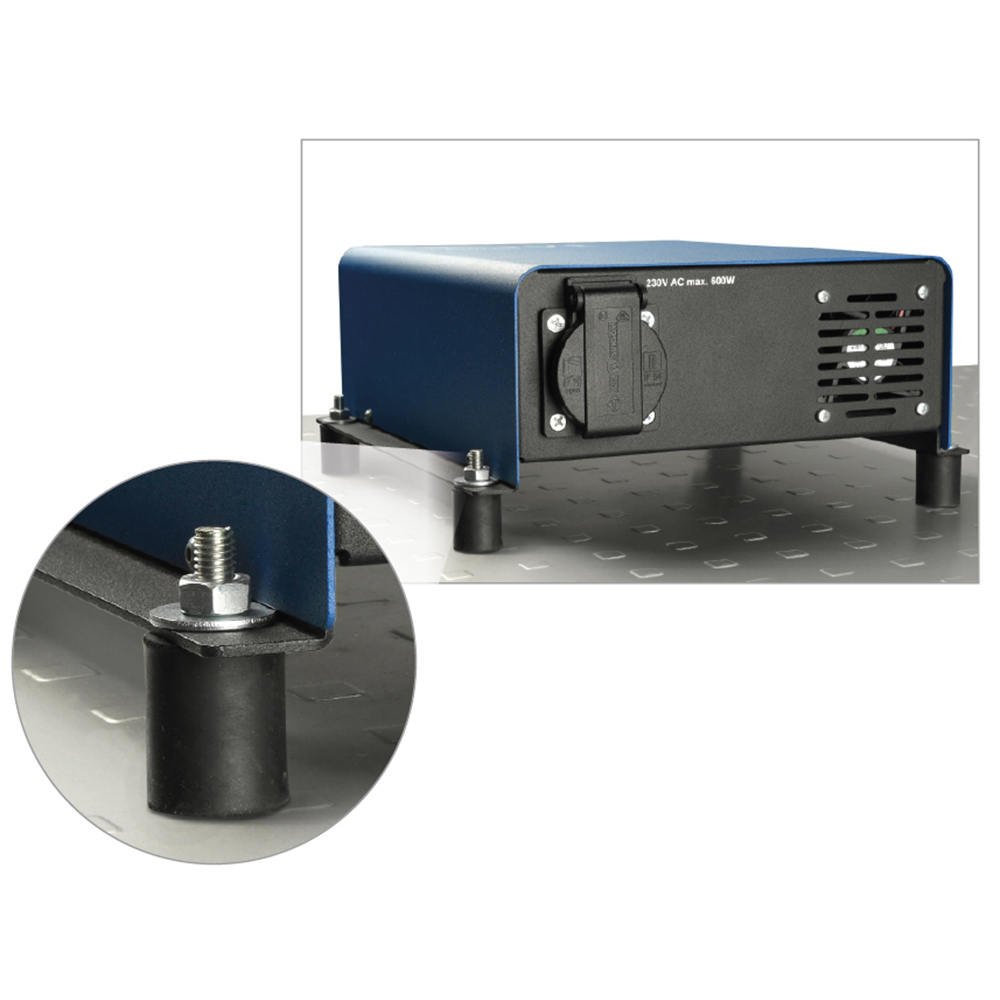

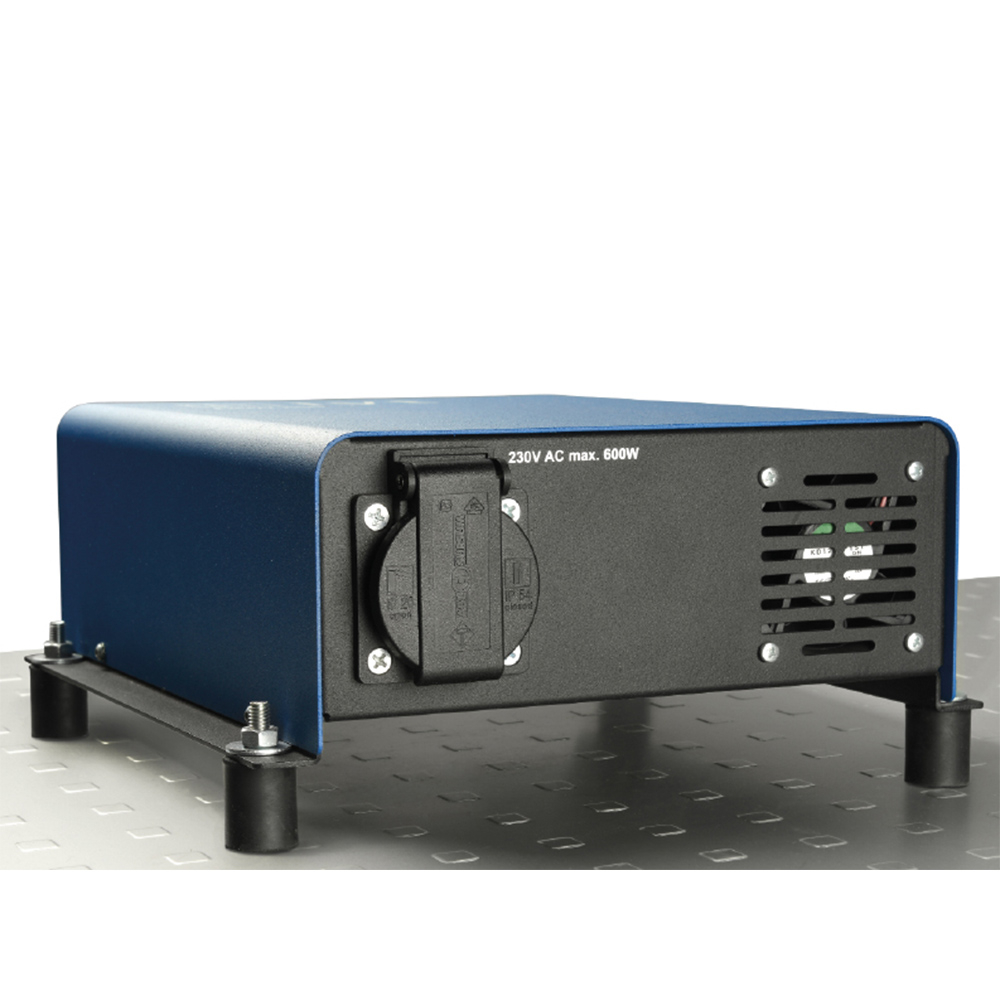

significantly increased. The four vibration dampers will simply be fastened by means
of 8 self-locking nuts and the 8 washers between the base and the inverter.

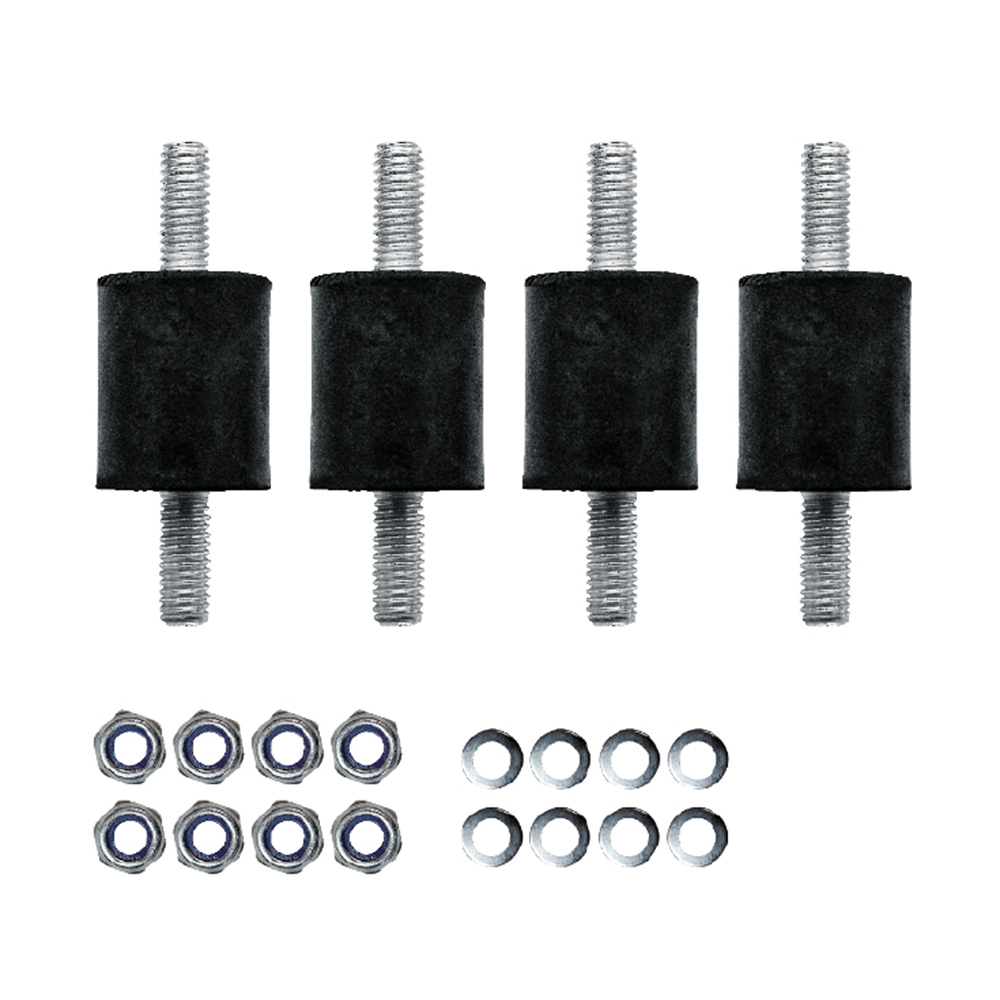

Delivery content

4 x Vibration dampers
8 x M6 nuts
8 x washers


Technical data

Material: natural rubber, galvanized steel
Total height: 5.5 cm
Rubber height: 2.5 cm
Rubber width: 2.0 cm
Thread: M6
Thread length: 1.5 cm



This product is compatible with:

Digital Sinusoidal AC Inverter DSW-300, 12 V, 300 W

Digital Sinusoidal AC Inverter DSW-300, 12 V, 300 W



• Real sinusoidal alternating current 230 V/50 Hz
• High peak output power 600 W
• Galvanic isolation
• Standby and sleep function
• Dynamic deep discharge protection
• Power start function for loads with high start-up current
• Power and temperature-controlled fan
• Over-voltage switch-off
• Country-specific power plug adapter available on request


Art.Nr.: 430101

234,45 EUR (19 % VAT excl.)
Digital Sine Wave Inverter DSW-300, 24 V, 300 W

Digital Sine Wave Inverter DSW-300, 24 V, 300 W



  • True sine wave voltage 230 V / 50 Hz
  • Peak power output 600 W
  • Galvanic isolation
  • Standby and sleep function
  • Dynamic deep discharge protection
  • Powerstart function for consumers with high inrush current
  • Performance and temperature controlled fans
  • Overvoltage cut-off
  • Country specific outlet sockets on request



Art.Nr.: 430102

234,45 EUR (19 % VAT excl.)
Digital Sine Wave Inverter DSW-600, 12 V, 600 W

Digital Sine Wave Inverter DSW-600, 12 V, 600 W



  • Input voltage: 12 V or 24 V DC
  • Double as high peak output power
  • Galvanic isolation of the inputand output stages
  • Energy-saving standby function
  • Dynamic deep discharge protection
  • Power start function
  • 5 V USB terminal
  • Temperature range -25 °C to +60 °C
  • Sturdy metal housing


Art.Nr.: 430103

317,65 EUR (19 % VAT excl.)
Digital Sine Wave Inverter  DSW-600, 24 V, 600 W

Digital Sine Wave Inverter DSW-600, 24 V, 600 W



  • True sine wave voltage 230 V / 50 Hz
  • Peak power output 600 W
  • Galvanic isolation
  • Standby and sleep function
  • Dynamic deep discharge protection
  • Powerstart function for consumers with high inrush current
  • Performance and temperature controlled fans
  • Overvoltage cut-off
  • Country specific outlet sockets on request



Art.Nr.: 430104

317,65 EUR (19 % VAT excl.)
Digital Sine Wave Inverter DSW-1200, 12 V, 1200 W

Digital Sine Wave Inverter DSW-1200, 12 V, 1200 W



  • Input voltage: 12 V or 24 V DC
  • Double as high peak output power
  • Galvanic isolation of the inputand output stages
  • Energy-saving standby function
  • Dynamic deep discharge protection
  • Power start function
  • 5 V USB terminal
  • Temperature range -25 °C to +60 °C
  • Sturdy metal housing


Art.Nr.: 430105

443,70 EUR (19 % VAT excl.)
Digital Sine Wave Inverter DSW-1200, 24 V, 1200 W

Digital Sine Wave Inverter DSW-1200, 24 V, 1200 W



  • Input voltage: 12 V or 24 V DC
  • Double as high peak output power
  • Galvanic isolation of the inputand output stages
  • Energy-saving standby function
  • Dynamic deep discharge protection
  • Power start function
  • 5 V USB terminal
  • Temperature range -25 °C to +60 °C
  • Sturdy metal housing



Art.Nr.: 430106

443,70 EUR (19 % VAT excl.)
Digital Sine Wave Inverter DSW-2000, 12 V, 2000 W

Digital Sine Wave Inverter DSW-2000, 12 V, 2000 W



  • Input voltage: 12 V or 24 V DC
  • Double as high peak output power
  • Galvanic isolation of the inputand output stages
  • Energy-saving standby function
  • Dynamic deep discharge protection
  • Power start function
  • 5 V USB terminal
  • Temperature range -25 °C to +60 °C
  • Sturdy metal housing


Art.Nr.: 430107

670,59 EUR (19 % VAT excl.)
Digital Sine Wave Inverter DSW-2000, 24 V, 2000 W

Digital Sine Wave Inverter DSW-2000, 24 V, 2000 W



  • True sine wave voltage 230 V / 50 Hz
  • Peak power output 600 W
  • Galvanic isolation
  • Standby and sleep function
  • Dynamic deep discharge protection
  • Powerstart function for consumers with high inrush current
  • Performance and temperature controlled fans
  • Overvoltage cut-off
  • Country specific outlet sockets on request
Art.Nr.: 430108

670,59 EUR (19 % VAT excl.)
Digital Sinusoidal AC Inverter DSW-2000-Synchron, 12 V, 2000 W

Digital Sinusoidal AC Inverter DSW-2000-Synchron, 12 V, 2000 W



• Parallel switchable
• Real sinusoidal alternating current 230 V/50 Hz
• High peak output power 4000 W
• Galvanic isolation
• Standby and sleep function
• Dynamic deep discharge protection
• Power start function for loads with high start-up current
• Power and temperature-controlled fan
• Country-specific power plug adapter available on request



Art.Nr.: 430109

713,45 EUR (19 % VAT excl.)
