Sinus Inverter SW-2000-Synchron/12 V

Sinus Inverter SW-2000-Synchron/12 V

Zoom image
Important characteristics and features:


• Continuous output rating 2000 VA
• Peak output rating 3000 VA
• Output voltage AC (+5/-8 %) 230 V

696,64 EUR

19 % VAT excl.

Product no.: 430010

Sinus Inverter SW-2000-Synchron/12 V


• Continuous output rating 2000 VA
• Peak output rating 3000 VA
• Output voltage AC (+5/-8 %) 230 V

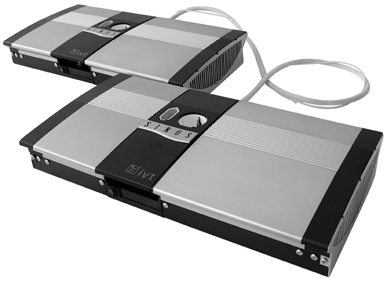

Synchro-Version

Mostly of identical quality as the model SW2000 (with additional connection socket).
Therefore two units can be operated parallel in order to achieve a permanent output power of 4000W.
These units can also be operated as single units with the respective output power of 2000W.
Please order the matching connection cable separately.



Technical data

Rated voltage: DC 12 V
Input range: 11 - 15 V
Max. input current: 220 A
Input rating in open-circuit/no-load operation: 18 VA
Continuous output rating: 2000 VA
Peak output rating: 3000 VA
Output voltage: AC (+5/-8 %) 230 V
Frequency: (±1%) at 12 V/24 V DC IN 50 Hz
Input: pole terminal
Output power outlet: 1 x Euro/1 x Schuko
Can be operated by remote control: yes
Dimensions: 450 x 245 x 70 mm
Weight: 5,2 kg


Recommended products:

Connection cable for SW-inverter 2000 W Synchron

Connection cable for SW-inverter 2000 W Synchron


• With matching terminal
Length approx. 1 m


Art.Nr.: 421007

25,17 EUR (19 % VAT excl.)
Connection cable 1 m 35 mm<sup>2</sup> for SW-inverter 2000 W

Connection cable 1 m 35 mm2 for SW-inverter 2000 W


• Conductor cross-section: 35 mm2
• Cable length: 1 m
• Preassembled with cable end sleeves and eyelet rings
• Color-coded cable ends
• Including fuse holder with 200 A fuse


Art.Nr.: 421004

43,10 EUR (19 % VAT excl.)
Connection cable 2 m 35 mm<sup>2</sup> for SW-inverter 2000 W

Connection cable 2 m 35 mm2 for SW-inverter 2000 W


• Conductor cross-section: 35 mm2
• Cable length: 2 m
• Preassembled with cable end sleeves and eyelet rings
• Color-coded cable ends
• Including fuse holder with 200 A fuse


Art.Nr.: 421005

51,90 EUR (19 % VAT excl.)
Connection cable 3 m 35 mm<sup>2</sup> for SW-inverter 2000 W

Connection cable 3 m 35 mm2 for SW-inverter 2000 W


• Conductor cross-section: 35 mm2
• Cable length: 3 m
• Preassembled with cable end sleeves and eyelet rings
• Color-coded cable ends
• Including fuse holder with 200 A fuse



Art.Nr.: 421006

69,15 EUR (19 % VAT excl.)
Connection cable 3 m 50 mm<sup>2</sup> for SW-inverter 2000 W

Connection cable 3 m 50 mm2 for SW-inverter 2000 W


• Conductor cross-section: 50 mm2
• Cable length: 3 m
• Preassembled with cable end sleeves and eyelet rings
• Color-coded cable ends
• Including fuse holder with 200 A fuse


Art.Nr.: 421008

95,04 EUR (19 % VAT excl.)
Switching Station US-12N

Switching Station US-12N


• Suitable for sine wave inverters up to max. 2700 VA
• Microprocessor controlled priority switching
• Switches reliably between two 230 V AC power sources
• Precise switching thanks to high quality relays
• Protected against overload and short circuit
• Housing protection type IP 55


Art.Nr.: 400033

58,66 EUR (19 % VAT excl.)
Switching Station US-16, 230 V AC, 16 A, 3600 VA

Switching Station US-16, 230 V AC, 16 A, 3600 VA



Suitable for sine wave inverters up to max. 3600 VA
• Microprocessor controlled priority switching
• Switches reliably between two 230 V AC power sources
• Precise switching thanks to high quality relays
• Protected against overload and short circuit
• Housing protection type IP 55





Art.Nr.: 400034

74,79 EUR (19 % VAT excl.)
Second battery charger 12 V, 80 A

Second battery charger 12 V, 80 A



• Suitable for all 12 V lead batteries up to 500 Ah
• Intelligent charging managment of starter and second battery
• Protects the starter battery of your vehicle
• Suitable for 12 V solar isle systems
• E-mark certified


Art.Nr.: 900003

37,65 EUR (19 % VAT excl.)
Charging Booster WA 1208

Charging Booster WA 1208



• For charging 12 V car batteries while driving
• Suitable for lead-acid and lead-gel batteries
• Increases the charging voltage in the caravan




Art.Nr.: 920001

99,50 EUR (19 % VAT excl.)
Charging Booster WA 121525

Charging Booster WA 121525



For charging 12 V car batteries while driving
• Suitable for lead-acid, lead-gel, AGM and lithium batteries
• Compulsory for Euro 6 vehicles
• Fast charge by constant current charge (IUoU)
• Current-dependent change-over to charge protection




Art.Nr.: 910000

125,21 EUR (19 % VAT excl.)
Charging Booster WA 121545, incl. connection and temperature sensor set

Charging Booster WA 121545, incl. connection and temperature sensor set




• For charging 12 V car batteries while driving
• Suitable for lead acid, lead gel, AGM and lithium batteries
• Compulsory for Euro 6 vehicles
• Charging voltage up to 14.7 V
• Charging characteristic IUoU




Art.Nr.: 920000

319,00 EUR (19 % VAT excl.)
Charging Booster-Set WA 121525, incl. connection material for batteries

Charging Booster-Set WA 121525, incl. connection material for batteries



For charging 12 V car batteries while driving
• Suitable for lead-acid, lead-gel, AGM and lithium batteries
• Compulsory for Euro 6 vehicles
• Fast charge by constant current charge (IUoU)
• Current-dependent change-over to charge protection
• Incl. connection material for batteries




Art.Nr.: 920006

197,60 EUR (19 % VAT excl.)
