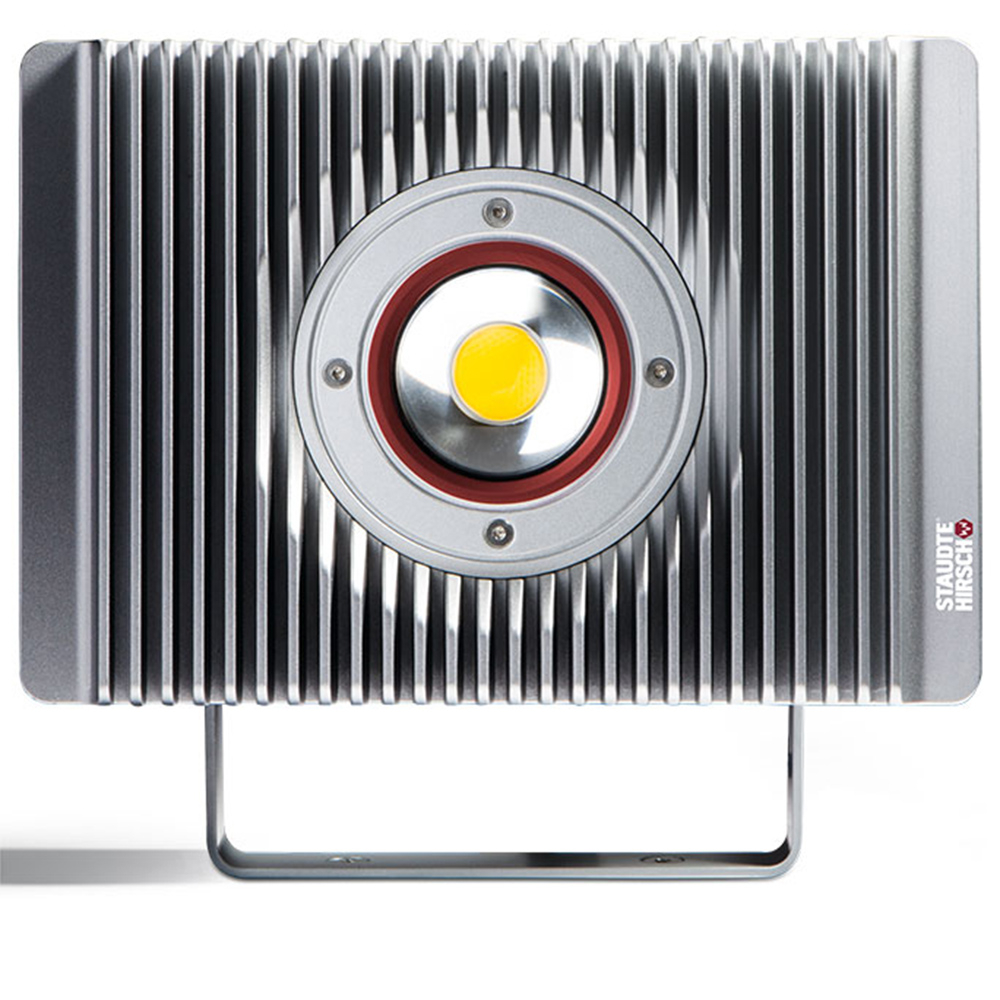

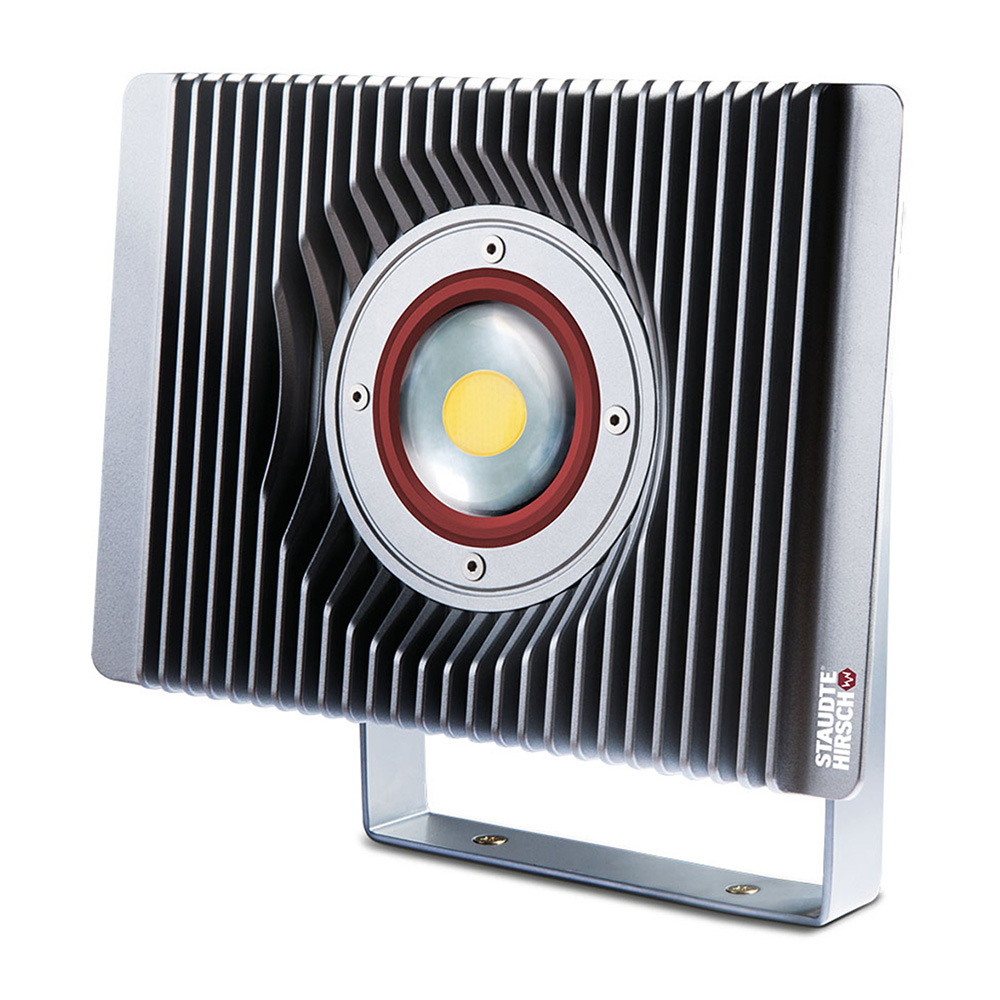

LED Wall Floodlight Staudte Hirsch SH-5.710, 60 W, 6,000 lm

LED Wall Floodlight Staudte Hirsch SH-5.710, 60 W, 6,000 lm

Zoom image
Important characteristics and features:



• Extremely bright due to 60 W COB LED with 6.000 lm
• Broad and even floodlight with a beam angle of 120°
• Light range of up to 80 m
• Color temperature: neutral white (4.000 K)
• 50.000 h lifespan of LED, completely maintenance-free
• 80 % of energy saving compared to halogen floodlights
• Suitable for mains voltages of 220 – 240 V AC with 50/60 Hz
• Curved lens made of tempered glass for optimal light refraction
• Concave housing for additional protection of the LED



125,88 EUR

19 % VAT excl.

Product no.: 557100

LED Wall Floodlight Staudte Hirsch SH-5.710, 60 W, 6,000 lm
LED Wall Floodlight Staudte Hirsch SH-5.710, 60 W, 6,000 lm
LED Wall Floodlight Staudte Hirsch SH-5.710, 60 W, 6,000 lm
LED Wall Floodlight Staudte Hirsch SH-5.710, 60 W, 6,000 lm
LED Wall Floodlight Staudte Hirsch SH-5.710, 60 W, 6,000 lm








Staudte Hirsch LED Wall Floodlight 60 W SH-5.710 –
Powerful floodlight for surface and object illumination


The LED Wall Floodlight 60 W SH-5.710 was designed for a powerful and even surface and object illumination for private, public and industrial applications.

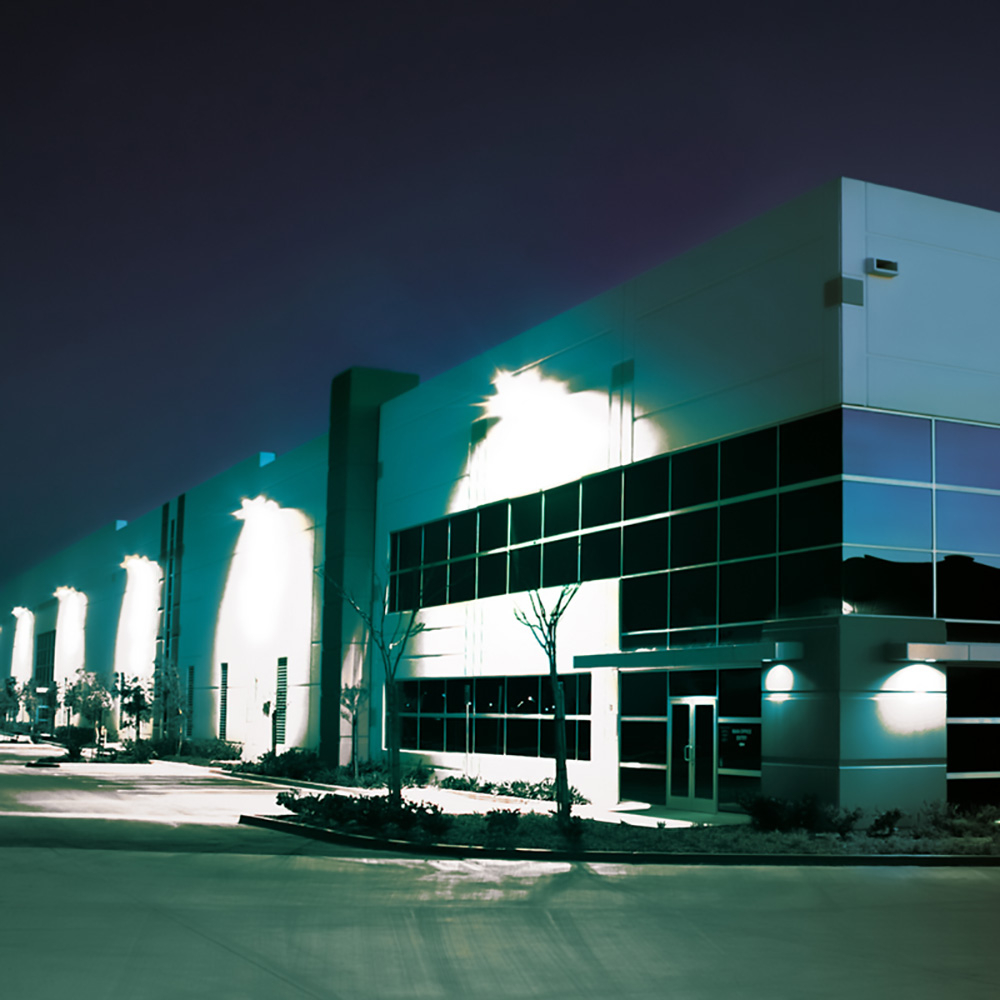

The powerful 60 W COB LED guarantees an intense and even illumination, for example to light up production and assembly halls, warehouses, high buildings like churches or castles, large construction sites, parking lots, as well as, gardens and parks. Furthermore, it provides for more security as a safety lighting for private homes and company buildings.

The sturdy LED floodlight (IP 65) is dust tight and protected against rain and water jets form any direction. Therefore, it can be permanently used both indoors and outdoors.

By virtue of the materials used, the first-class manufacture and the highly powerful LED, the SH-5.710 is of a quality that seeks its equal.



The most important characteristics and features:

 6.000 lumen – Extraordinarily bright floodlight



An evenly illuminated work area and a peak light range of 80 m – this is only possible due to the powerful 60 W COB LED and the specially curved lens which is made of tempered glass. Thanks to the easy-to-operate on/off switch, you have the ideal floodlight always at your disposal at the flick of a switch.



 60 W COB LED – A high light output combined with long durability




Equipped with a neutral white (4.000 K) high-performance LED, the LED Floodlight SH-5.710 guarantees an incomparably bright work light that sets new standards in its class. Its luminosity is 6.000 lm, the peak light output 100 lm/W.

The integrated LED is constructed on the basis of the Chip-On-Board technology (COB). Its advantages: Unlike SMD LEDs, COB LEDs have substantially better thermic as well as optical characteristics.


To put it plainly:
• Longer lifespan due to a low thermal resistance and a better heat dissipation.
• Perfectly even illumination due to homogenous light intensity and minimal light loss.
• Particularly effective: High peak light output of 100 lm/W.

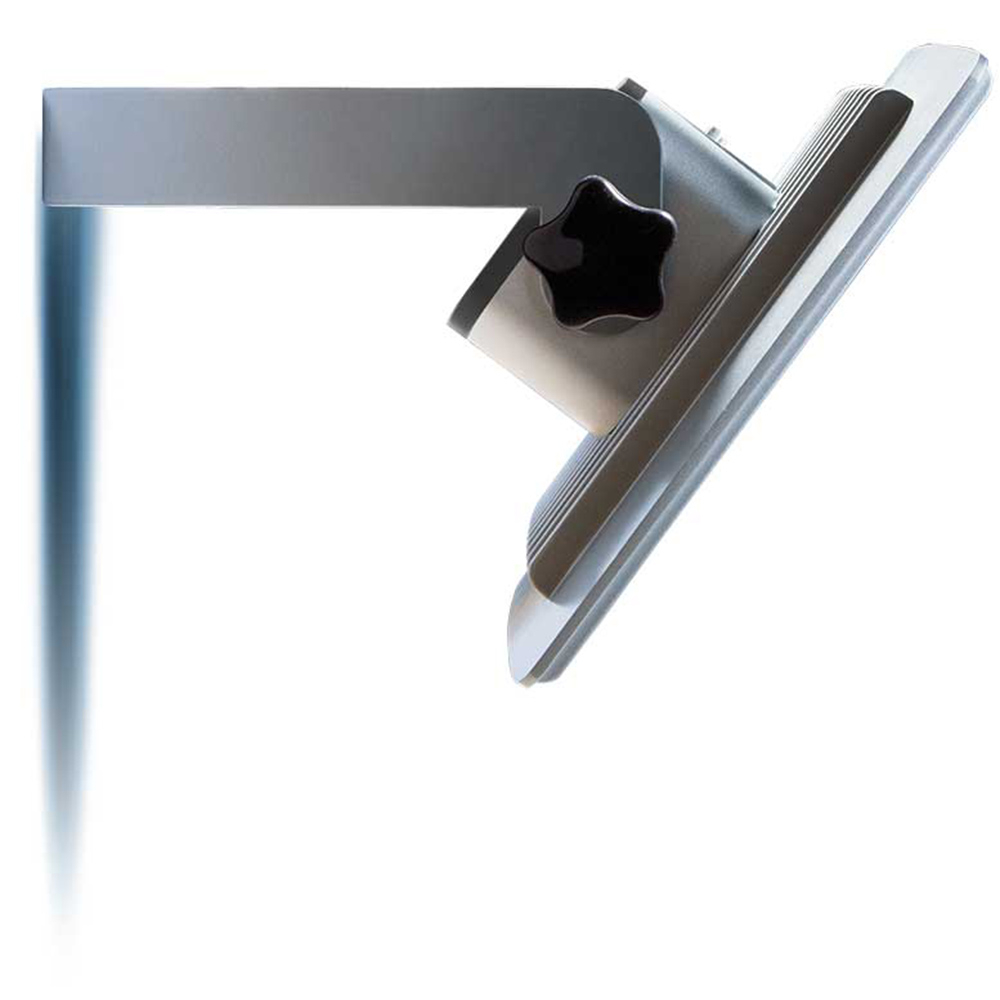

 Continuously adjustable and lockable floodlight body with 150°





Eine gezielte Ausrichtung des Lichtkegels ist durch den stufenlos schwenk- und arretierbare Strahlerkorpus möglich. Der Neigungswinkel beträgt 150°. Mittels der leicht bedienbaren Stellschrauben lässt sich der Strahlerkorpus in der gewünschten Position fest fixieren.

Der formschöne Strahler kann einfach durch den stabilen Montagebügel an der Wand, an der Decke oder am Boden montiert werden.





 IP 65 – protection against dust, rain and hose water



The sturdy floodlight (IP 65) is dust tight and protected against rain and water jets form any direction. Therefore, it can be permanently used both indoors and outdoors.




 Solid design - designed for extreme use





 Equipment

• Extremely bright due to 60 W COB LED with 6.000 lm
• Broad and even floodlight with a beam angle of 120°
• Light range of up to 80 m
• Color temperature: neutral white (4.000 K)
• 50.000 h lifespan of LED, completely maintenance-free
• 80 % of energy saving compared to halogen floodlights
• Suitable for mains voltages of 220 – 240 V AC with 50/60 Hz
• Curved lens made of tempered glass for optimal light refraction
• Concave housing for additional protection of the LED
• Shapely and sturdy metal housing of die-cast aluminum
• IP 65, protection against dust, rain and hose water
• Cooling fins on the front and back for effective heat dissipation
• Continuously adjustable and lockable floodlight body with
  an angle of inclination of 150°
• Suitable for wall, ceiling and floor mounting

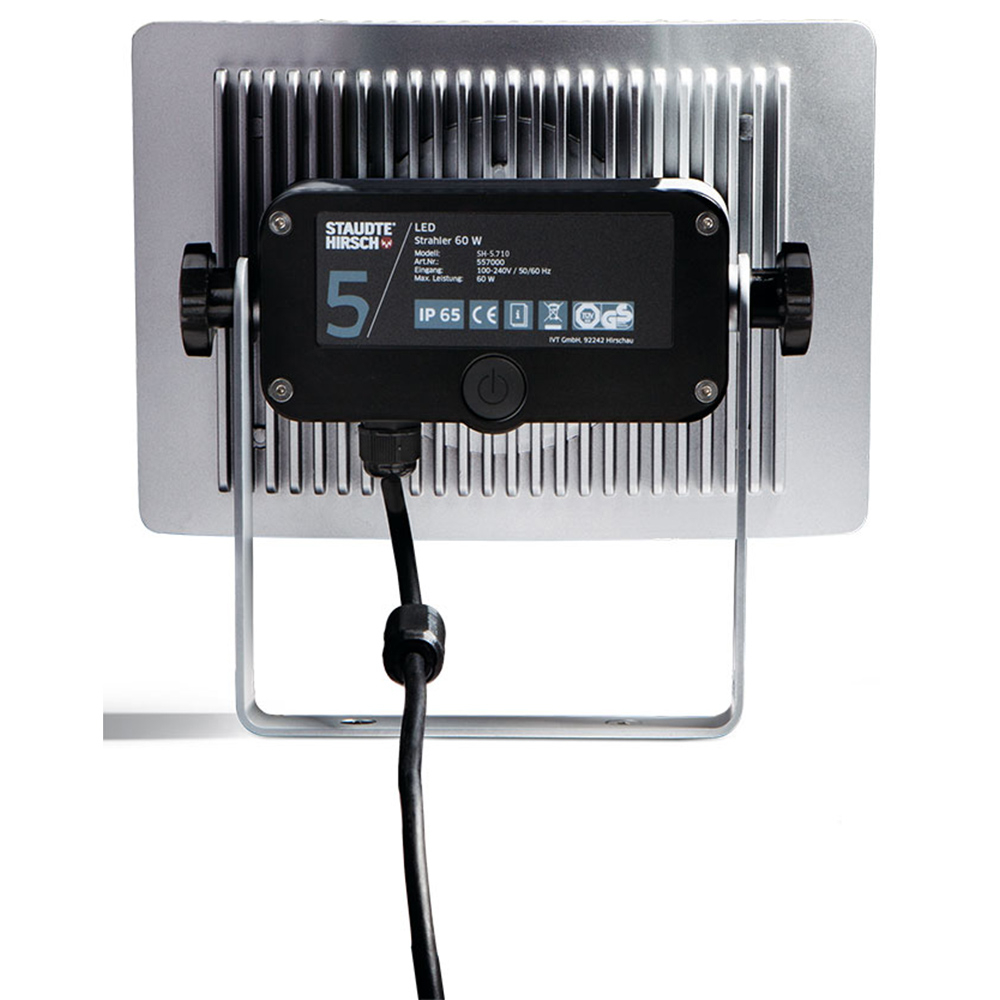

• Manual switching option with easy-to-operate on/off switch on
  the back
• 1 m connection cable with open end for an easy connection to
   the power supply







 Extremely economical


The LED spotlight SH-5.710 is absolutely maintenance-free, durable and energy-saving.

Moreover, the SH-5.710 guarantees an energy saving of 80 % compared to conventional halogen floodlights – thanks to the efficient light output of its light source.





 3 year manufacturer warranty


  Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge.





 Delivery content


• LED Wall Floodlight SH-5.710, 60 W
• Instruction manual in DE, GB, FR, NL, ES, PL








Technical data LED Wall Floodlight SH-5.710, 60 W
Current supply 220 – 240 V AC; 50/60 Hz
Light source COB LED ZC40
Power consumption (max.) 60 W
Luminous flux 6.000 lm
Efficiency 100 lm/W
Color temperature 4.000 K | Neutral white
Working life LED
50.000 h
Lighting mode
Flood light
Light range 80 m
Beam angle
120°
Inclination lamp head 150°
Protection class I
Type of protection IP 65
Power connection
H05RN-F 3 x 1 mm² with open end, 1 m
Energy efficiency class A+
Temperature range -20 °C to +40 °C
Color silver
Material
Aluminum
Dimensions (L x W x H) 260 x 180 x 75 mm
Weight 2,2 kg






Downloads:





Instruction manual
LED Wall Floodlight
SH-5.710,
60 W



Download PDF Version »
